Factory #3603 (BLACK Hole) | SPECIFICATION | ||
Form Factor (Midi, Micro, Mini ITX, Full) | Midi ATX Tower | ||
Chassis | SPCC : 0.5mm | ||
PSU Form Factor | Bottom/ATX | ||

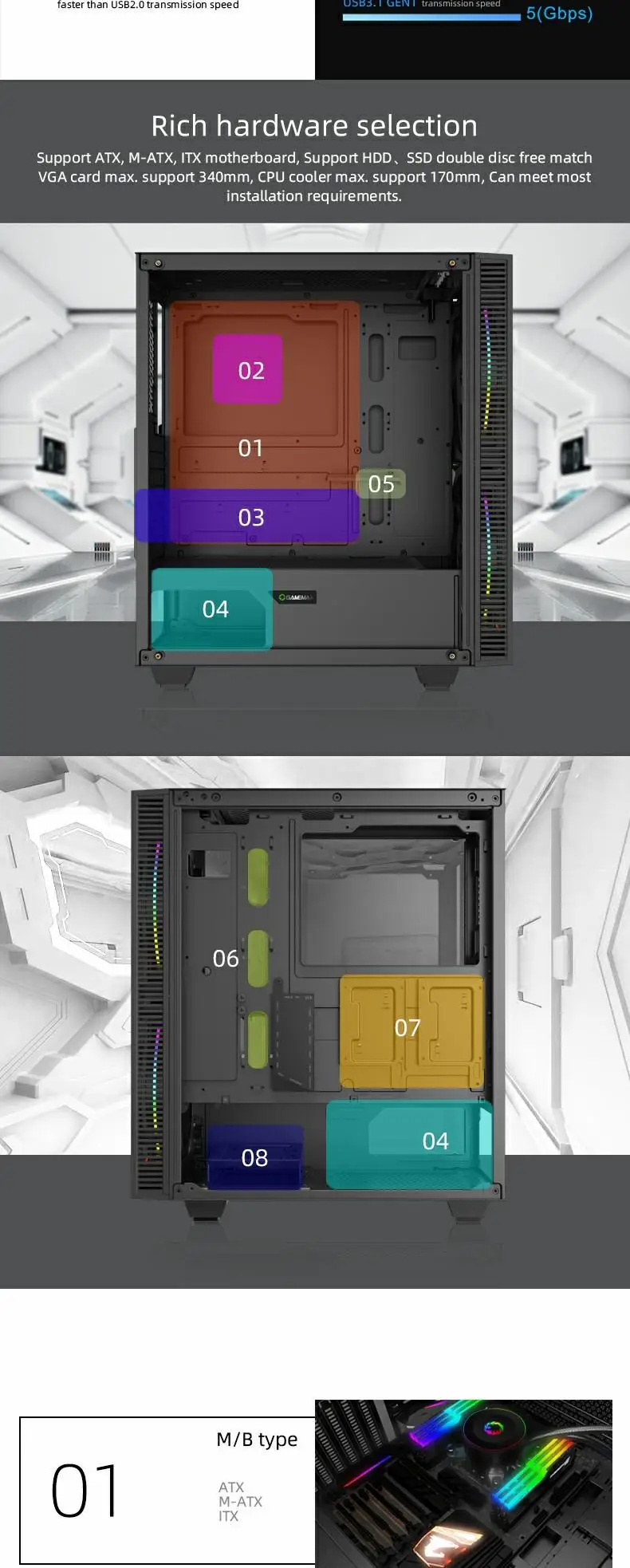

M/B Form Factor | ATX、M-ATX、E-ATX (No fan on front) | ||
Front Panel | ABS | ||
Top Panel | metal cover | ||
Branding | Box | GameMax standard | |
Unit | 1 | ||

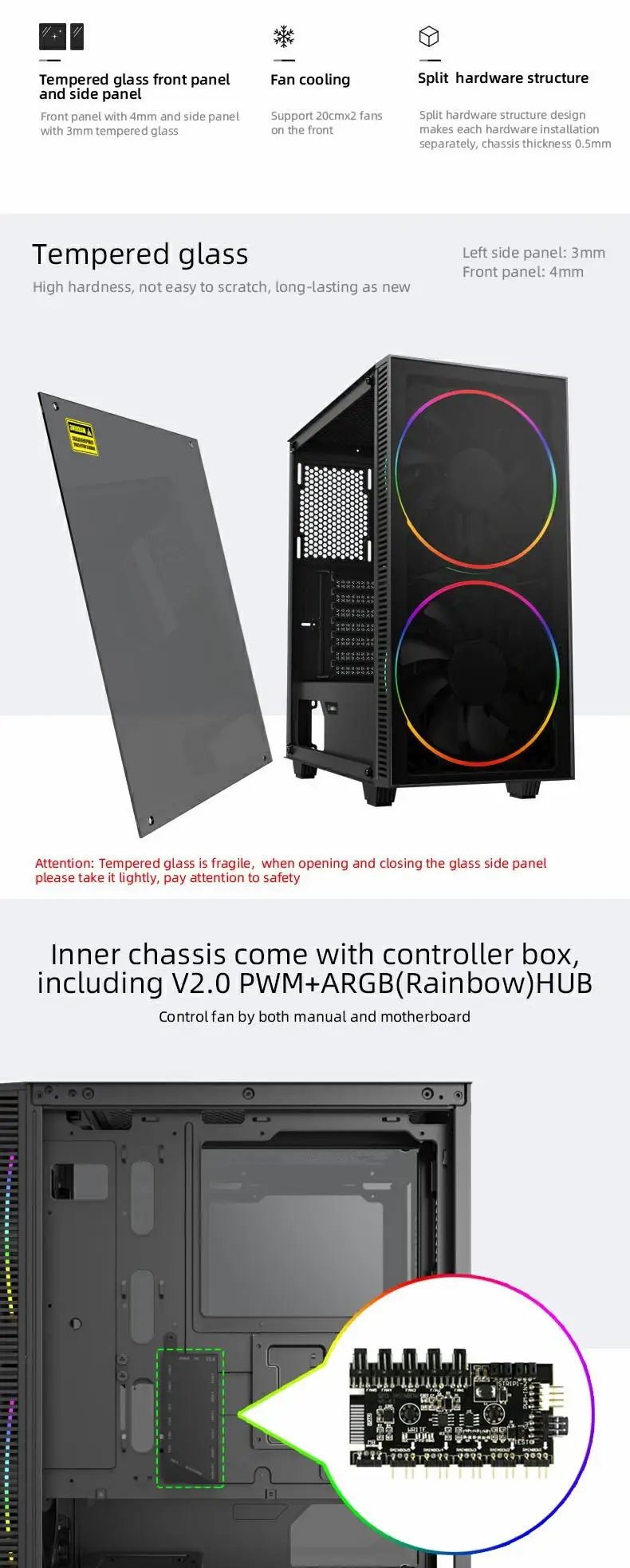

Side Panel | Left | Tempered Glass | |
Right | metal cover | ||
External Drive Bay(s) | 5.25" (ODD) | *0 | |
3.5" | *0 | ||
Internal Drive Bay(s) | 3.5" (HDD) | *2 | |
2.5" (SSD) | *2 | ||

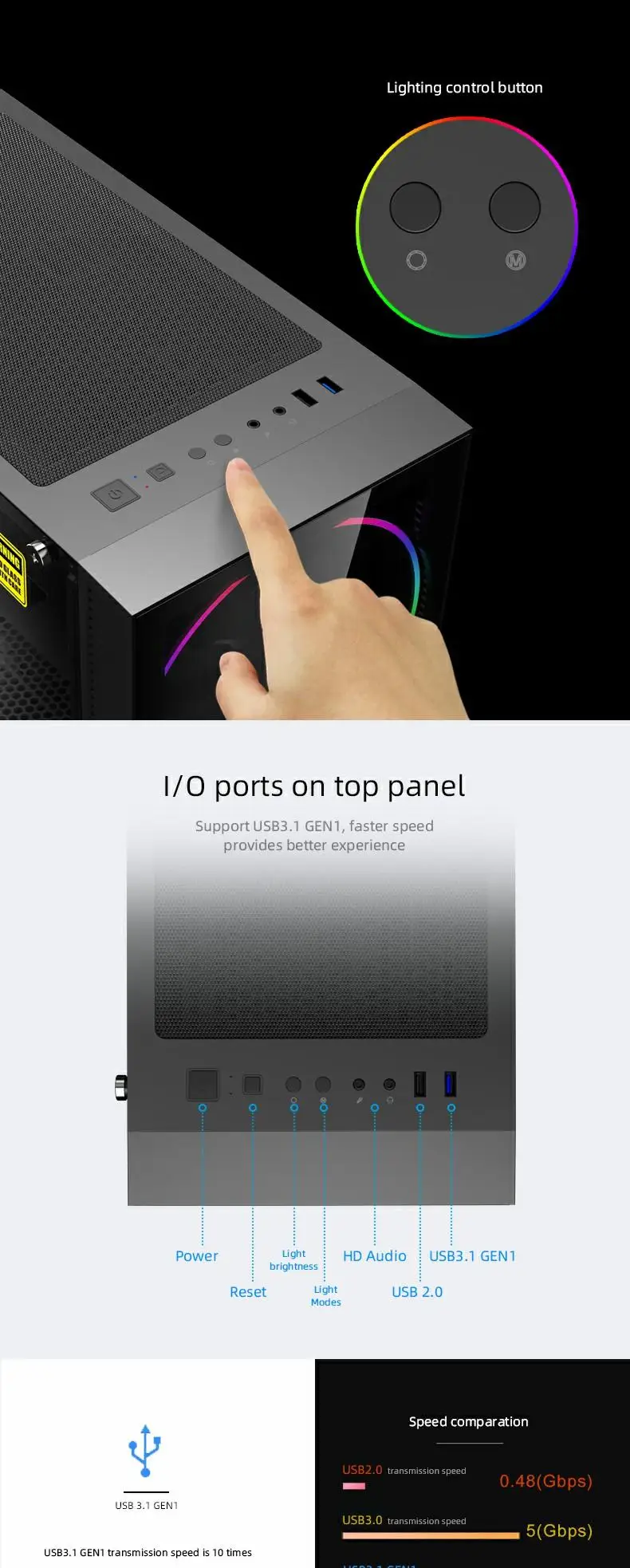

I/O CONFIG | Buttons | *2 | |
USB2.0 Port(s) | *1 | ||
USB3.0 Port(s) USB3.1 GEN1 | *1 | ||
HD Audio Support | *1 | ||
Card Reader (Support) | *0 | ||
P-Lock | *0 | ||

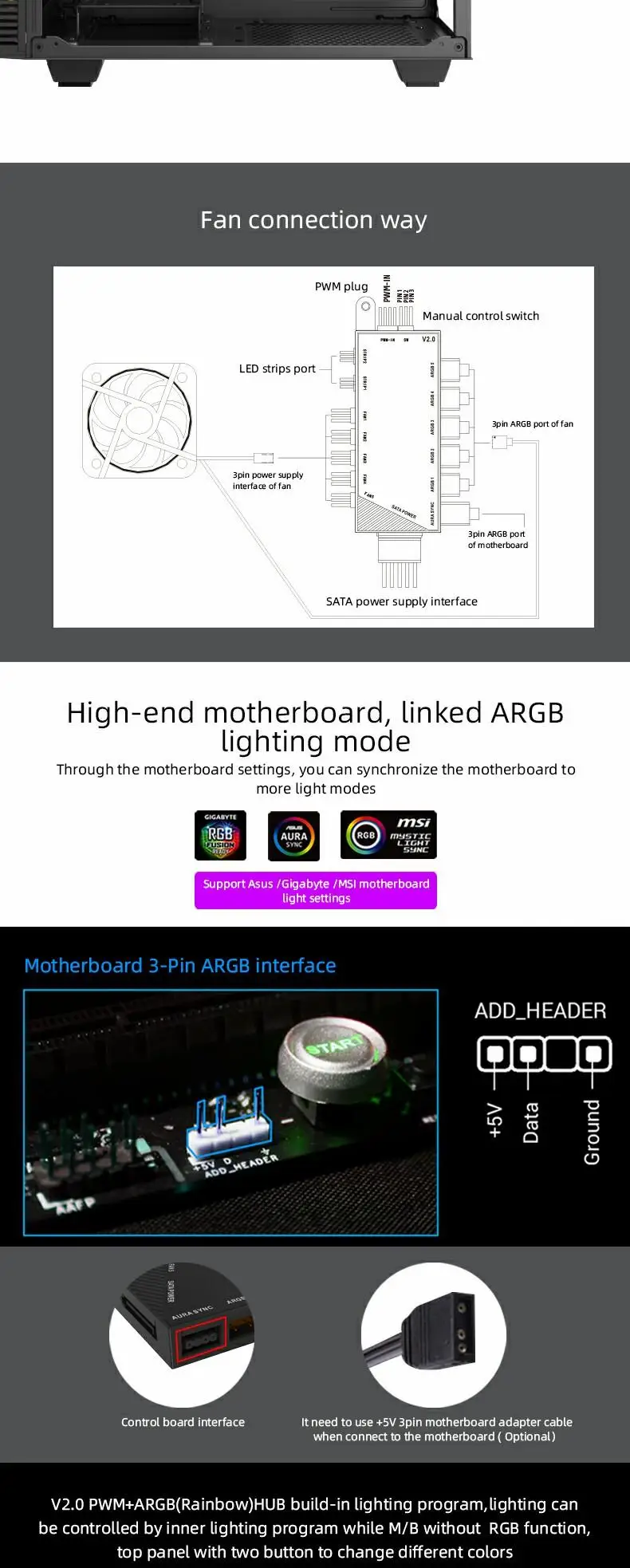

RGB Controller | *1 | ||
Controller max. fans | *5 RGB and 3pin fan power | ||
RGB Controller max. LED strips | *2 | ||
Remote (IR or RF) | *Top RGB switch | ||

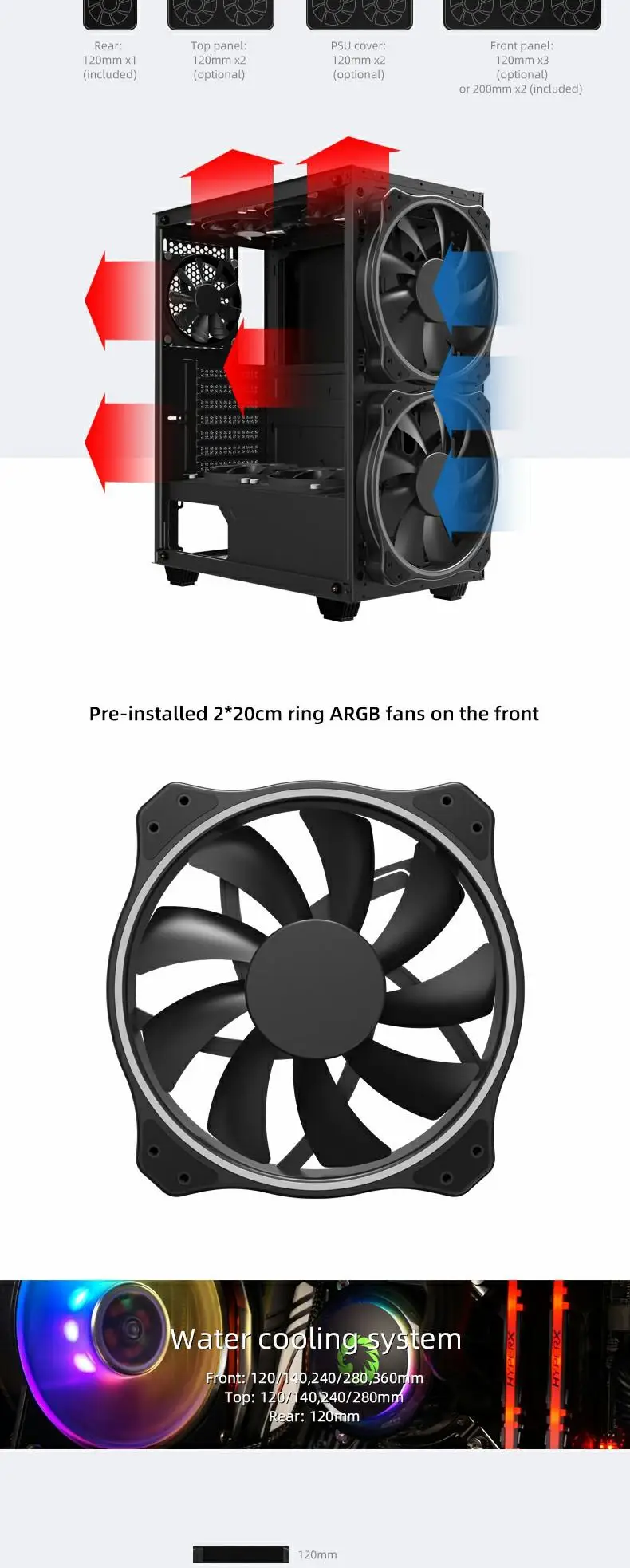

Cooling Fan Support | Front | 2 x 200mm ARGB Fan(Included) | |
Top | 2x120mm ,2x140mm (optional) | ||
Rear | 1x120mm (Optional) | ||
Left Side | 0 | ||
PSU Cover | 2x120mm (Fan optional) | ||

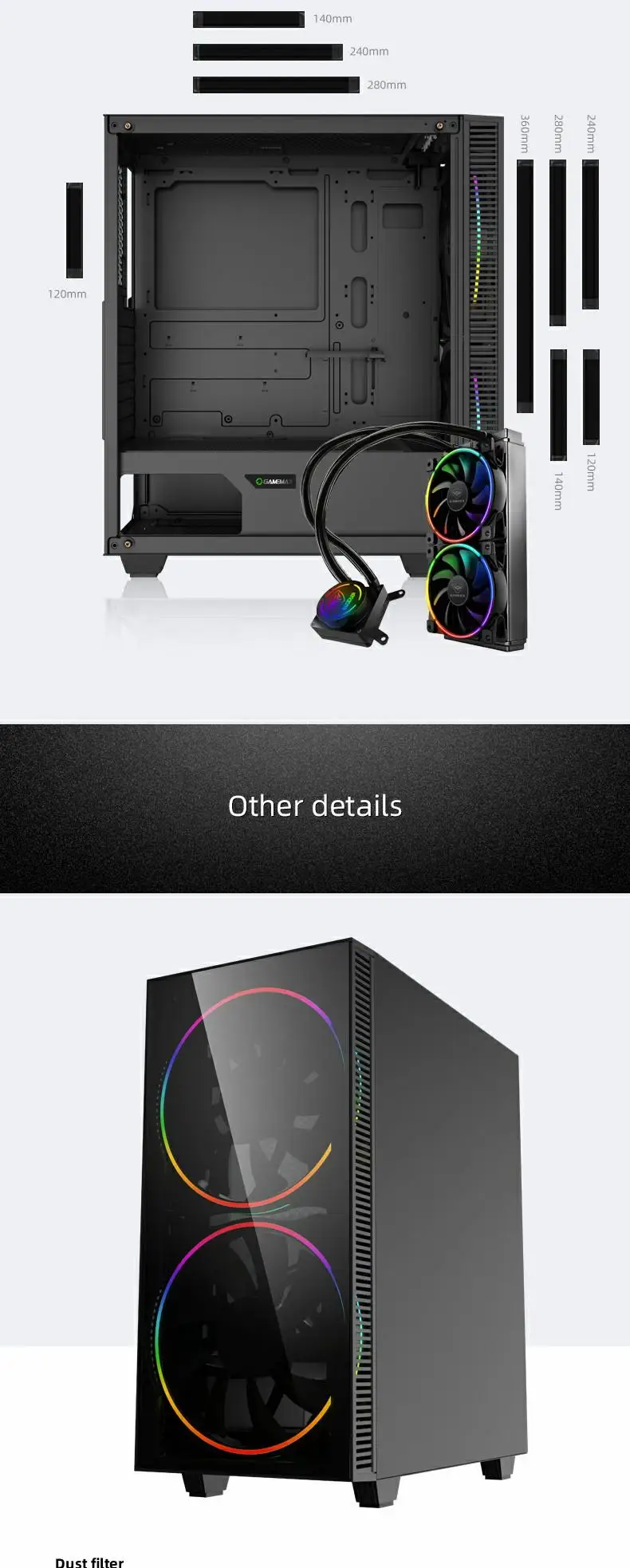

Water Cooling Support (Radiator Size) | Front | 120mm, 140mm,240mm,280mm | |
Top | 120mm,240mm | ||
Rear | 120mm*1 | ||

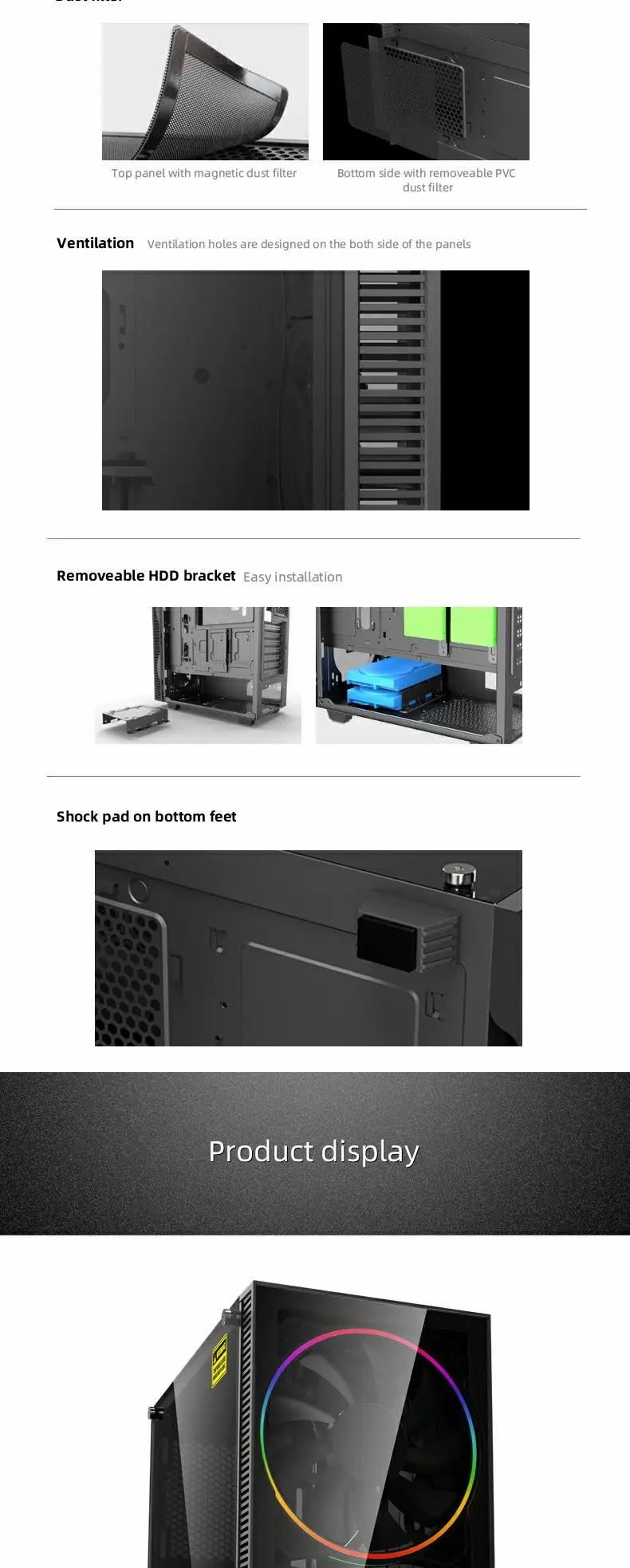

Dust Cover | Bottom and top cover with dust filter | ||
Slots | *7 | ||
Carton & Logo | GAMEMAX | ||

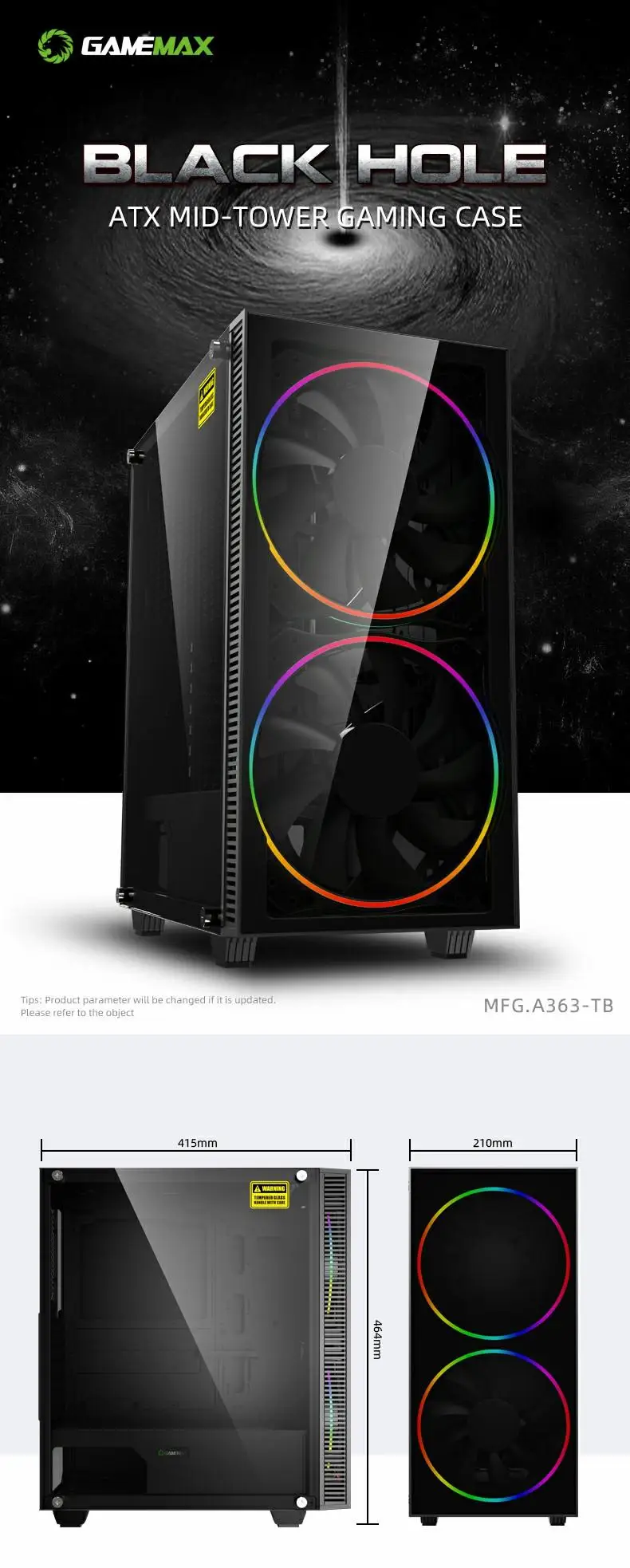

Dimensions | Chassis | (L)360*(W)210*(H)440mm | |
Full Case (inc Fascia) | (L)421*(W)210*(H)460mm | ||
Carton | (L)*(W)*(H)mm | ||
Net Weight (Kg) | 5.5kgs | ||
Gross Weight (Kg) | 6.6kgs | ||
VGA Card Length | up to 330mm | ||

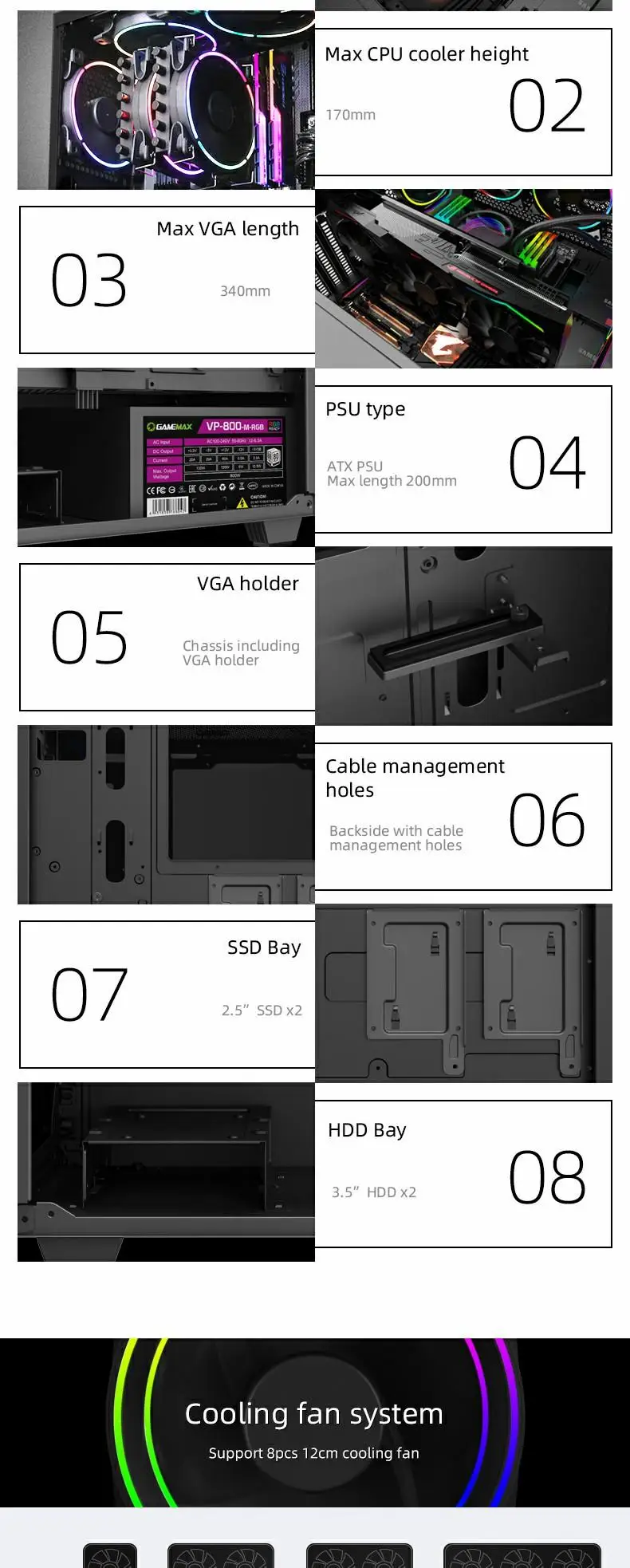

CPU Cooler Height | 170mm | ||
Cable Management Depth | 22mm |
