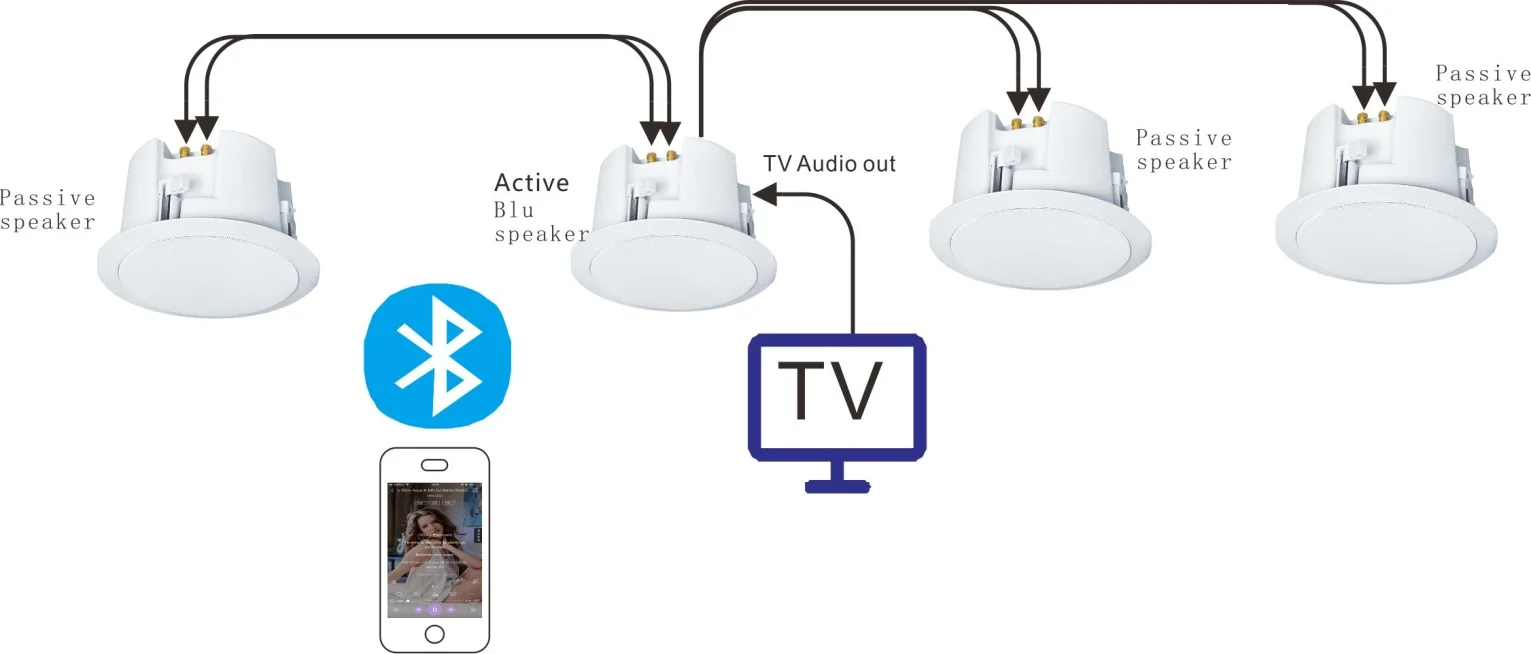

With the improvement of people's quality of life and the approaching of family background music, today our XBPA brand background music series launched a simple and fashionable wireless Bluetooth ceiling speaker, Bluetooth speaker, with high-quality non-destructive sound quality and high-end stereo effect. The latest Bluetooth 4.0 Bluetooth version, wireless mobile phones, tablets. Computer, TV, desktop computer, Bluetooth device play music! Bluetooth receives a distance of 10-15 meters. Built-in imported digital power amplifier and dual-channel design. It only needs power. The power can reach 40W*2. It can connect three fixed resistance speakers, China's first-class Bluetooth audio speakers and fashionable wireless background music system.

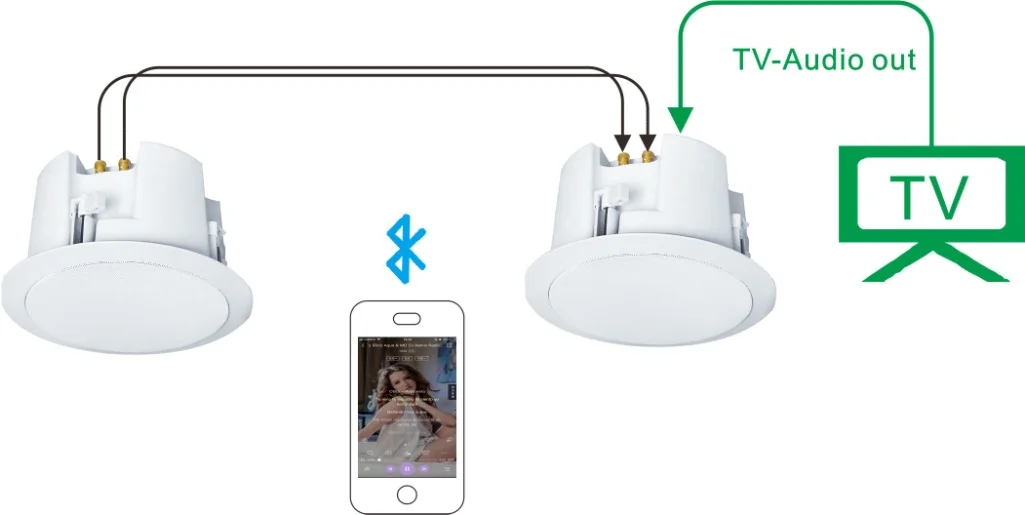

2.0 CH Bluetooth speaker

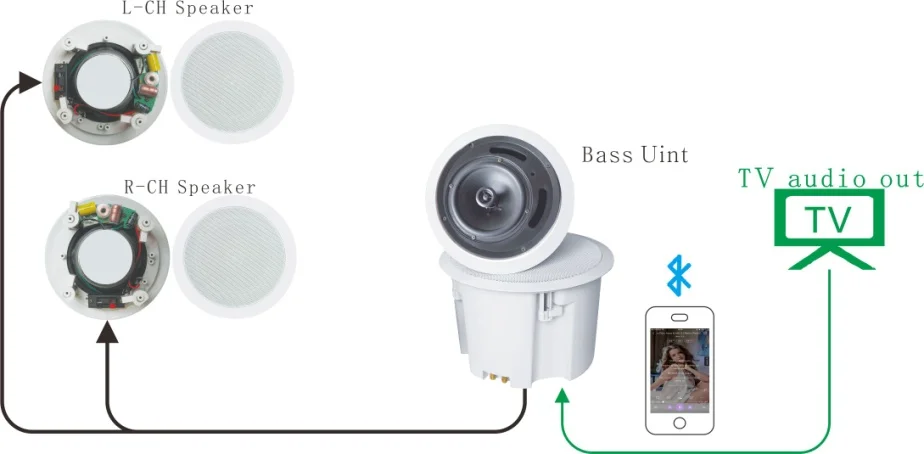

2.1 CH Bluetooth speaker

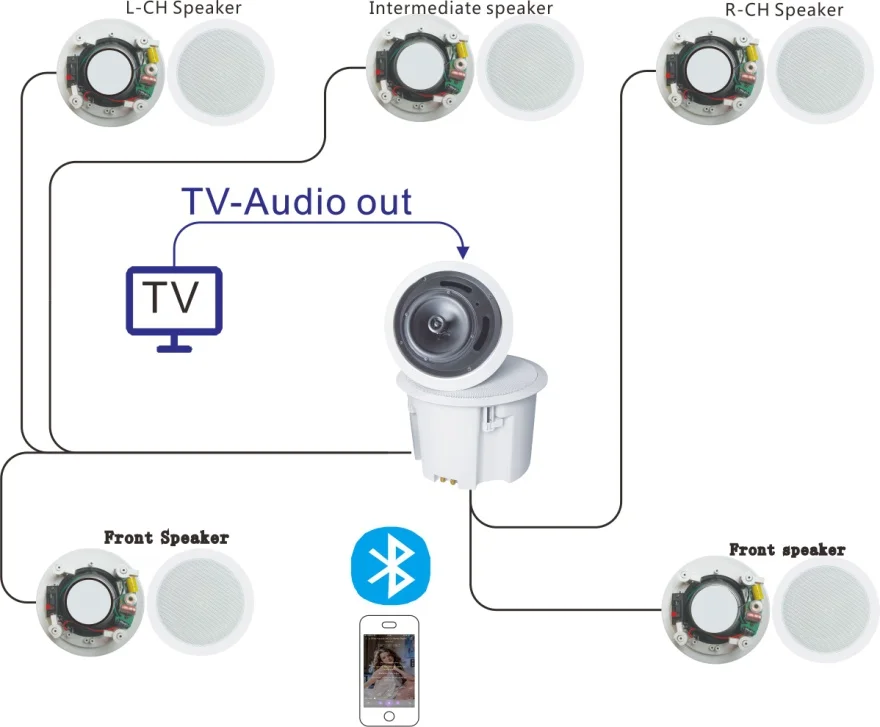

4.0 CH Bluetooth speaker
5.1 CH Bluetooth speaker
Product introduction

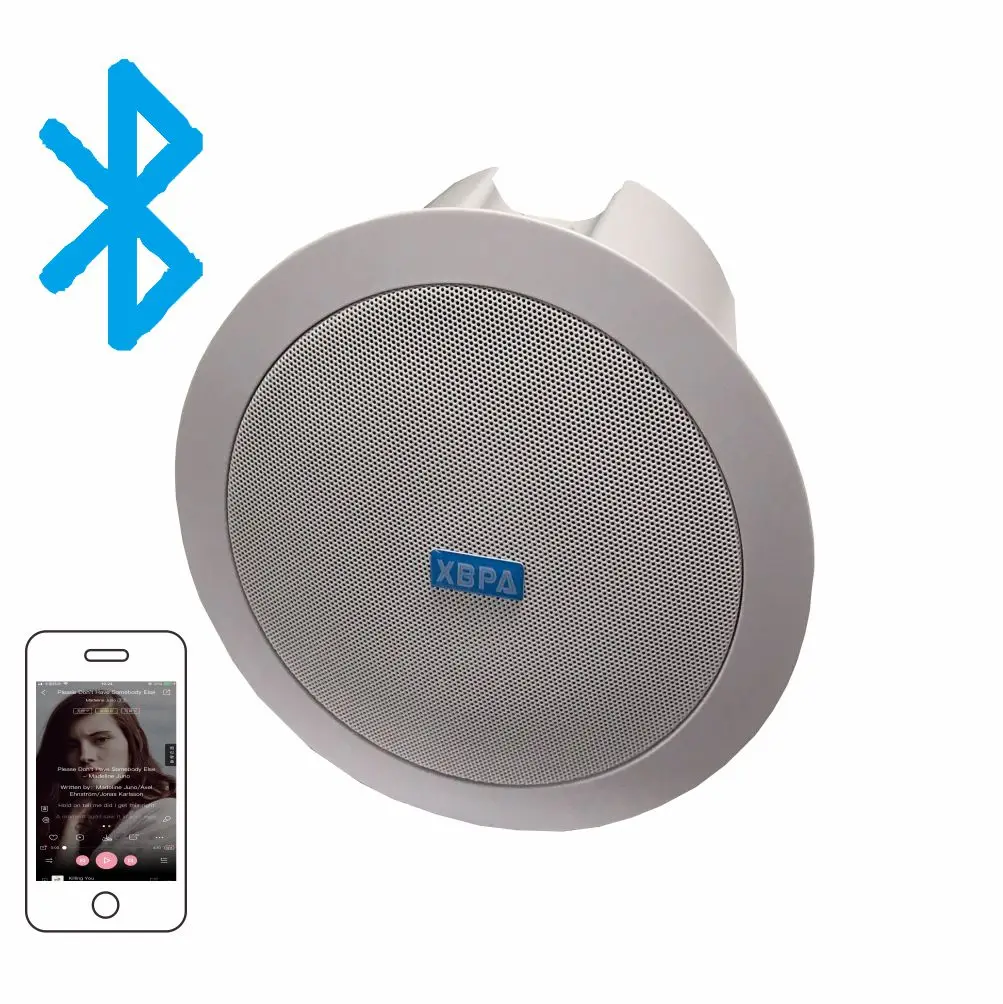

High fidelity coaxial bluetooth wireless ceiling speaker is an intelligent wireless audio data transmission bluetooth speaker independently developed by our company. Based on high-end CSR BLUECORE 8635 design, it aims to provide customers with high efficiency, high quality, high stability stereo wireless transmission ceiling speaker. The ceiling type speaker adopts the method of free driving. Customers only need to connect the speaker to the application products, and then they can quickly realize the wireless transmission of music and enjoy the fun of wireless music.
Product features
Bluetooth ceiling speaker connects with mobile phones, ipads, laptops and other wireless devices locally to realize local wireless audio transmission and sound amplification.

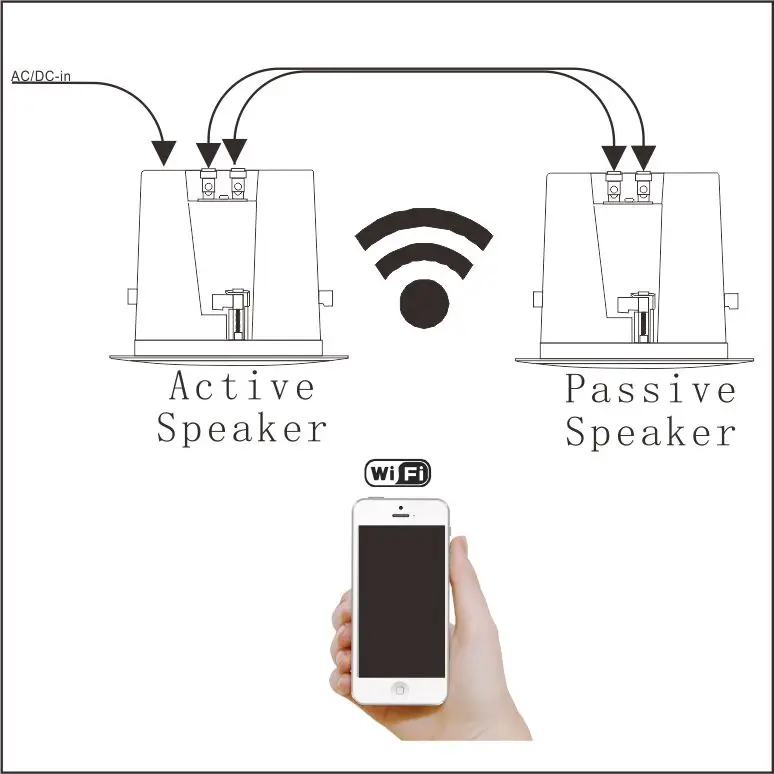

The product is widely used in the family sitting room, bedroom, conference hall, office building, school classroom and so on. Each bluetooth speaker can be connected to a passive speaker to form stereo sound.

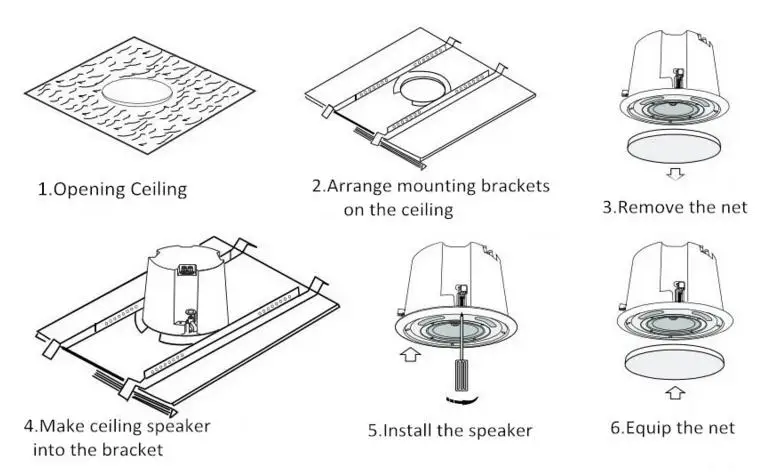

The product is installed on the ceiling, with one external audio input and one built-in bluetooth wireless audio receiver. The external audio signal is preferred. When there is an external audio signal, it will automatically switch to the external audio signal. The digital constant resistance power amplifier adopts high-efficiency audio chip, and the speaker adopts high-end coaxial high-fidelity loudspeaker to meet the medium-high-end background music and broadcast application scenarios.
Integrated day fancy design, delicate and beautiful, exquisite technology, all show high-grade temperament;
No sound input signal, the device into standby state, there is a signal immediately open, no delay; With dc backup interface,
Digital power amplifier with intelligent gain adjustment, adaptive power supply and automatic power adjustment is always in the working state of performance optimization and efficiency maximization.
Built - in 2 - frequency circuit, clear treble, full middle tone, rich bass.
Stereo output 30W*2
With flame retardant metal rear cover, safer use;
Technical parameters:
Type no. |
XBPA – 1020B |
The power supply Audio interface |
DC24V 2A |
The 3.5 MM |
|
The bluetooth specification |
Bluetooth V4 |
Modulation method |
GFSK, PI /4 DQPSK, 8DPSK |
Support bluetooth protocol |
AVRCPV1.4 HFPV1.6 HSPV1.2, A2DPV1. 2 |
Wireless transmission range |
10 meters |
Bluetooth audio format |
Support AAC, MP3, SBC, stereo |
Rated power |
30 w * 2 |
Standby power consumption |
< 2 w. |
Frequency response |
60 hz ~ 18 KHZ + 1 / - 3 db |
Harmonic distortion |
THD 1% or less |
Signal to noise ratio |
68 db or higher |
Load the horn |
8 Ω |
Packing list |
Surround sound passive speaker *1, active speaker *1, power adapter *1, manual *1, warranty card *1 |
Speaker unit |
5.25 "coaxial loudspeaker. |
Frequency division circuit |
2 frequency division. |
Intelligent power |
Start immediately if there is a signal, cut off automatically if there is no signal |
Company profile
XBBA is one of the earliest manufacturers of public broadcasting system, digital conference system, professional sound reinforcement system, central control system, remote video conference system, HD recording and broadcasting system, family background music system and remote interactive teaching system in China.
scale

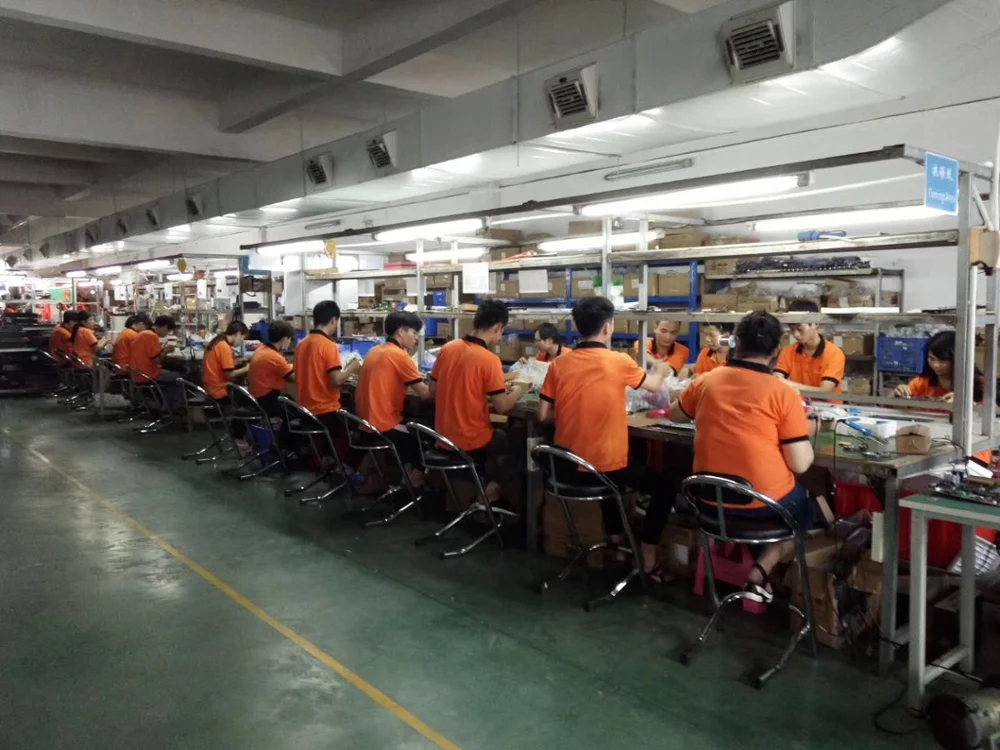

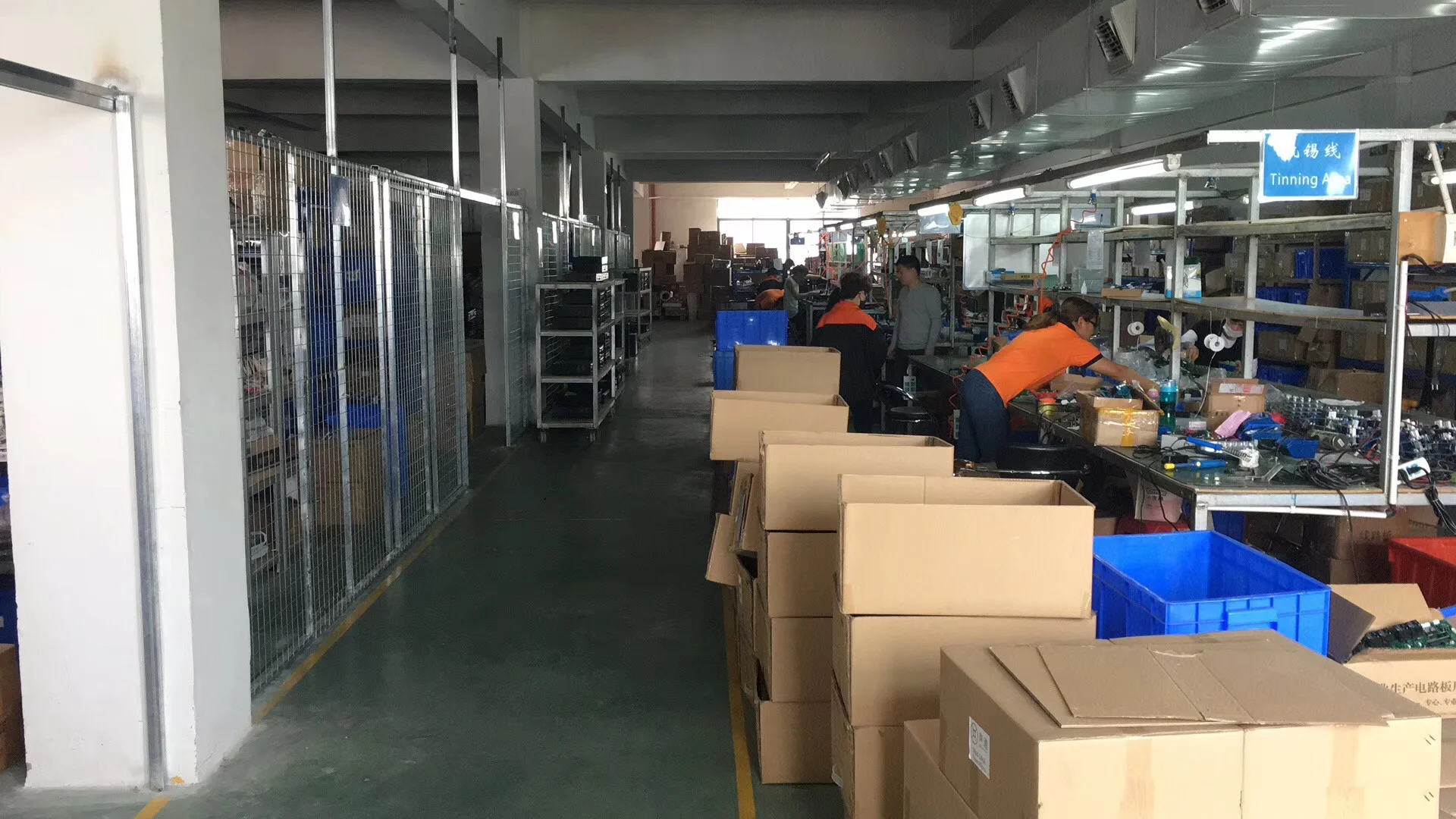

Supporting production includes: electronic workshop, high-tech product workshop, all-digital conference system workshop, wireless wheat workshop, speaker workshop, professional audio workshop, hardware workshop, woodworking workshop, spraying workshop, FRP workshop, surface treatment oxidation workshop.
research and development
High-tech Development Department/Conventional Product Development Department/Personalized Product Customization Development Department
system
Six core systems:
1. HD remote video conferencing system.
2. Full digital conference system + paperless multimedia conference system + conference sound reinforcement system.
Three. Full Digital Public Broadcasting System + Full Digital Fire Broadcasting System.
4. Distributed mosaic processing system.
5. Central control matrix system.
6. Full HD Recording and Broadcasting System + Educational Cloud Platform.
application
Each system focuses on different professional industries, including schools, gymnasiums, buildings, intelligent buildings, hotels, banks, prisons, real estate, commercial real estate, Park Square pedestrian street, companies, factories, enterprises and institutions, hospital supermarkets, terminal airports, entertainment and leisure, etc. E venue, exhibition hall, government units, etc.
prerequisites
The company has passed ISO 9001 quality certification, 14001 environmental certification, 18001 occupational health certification, 27001 Information Technology Security certification, CCCF fire protection certification, 3C certification and other certification, and constantly meet the global certification requirements.
Price
"High cost performance" is our consistent pursuit.
logistics
The year-round inventory of finished products is 45 days. We guarantee delivery within 10 days of normal system.
