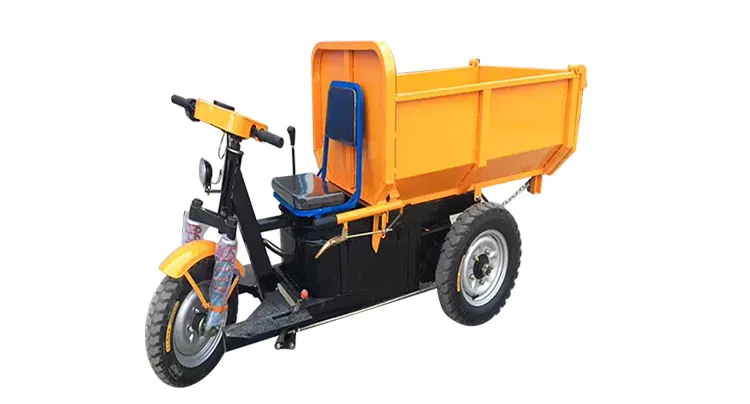

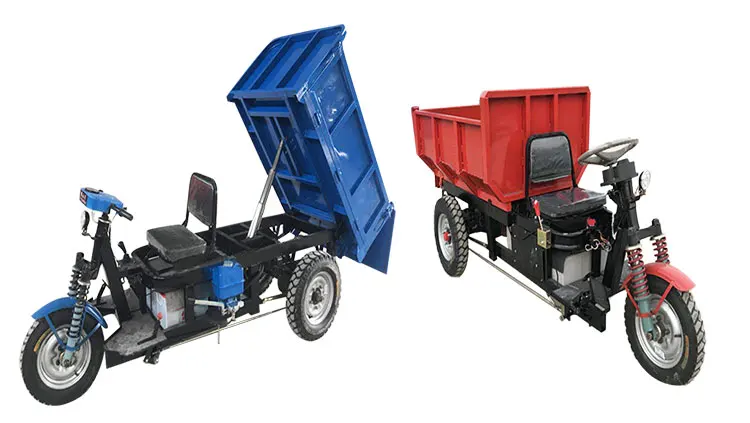

Electric dump trucks, also known as electric mining vehicles and electric dump trucks, are battery vehicles used by factories or mining plants to transport and transport raw materials, semi-finished products, finished products, ores, slag and other materials. Electric tricycles used in factories and mines generally carry large loads, adapt to the rugged roads in the factory area and mining areas, work long hours, and require high configuration. The carrying weight is generally about 1.5 tons -2 tons. Generally, the loader or forklift is used for loading. The thickness of the trunk can meet the requirements of large-scale mechanical loading and is equipped with a hydraulic discharge system.
Technical Parameters:
Model
YH-1000
YH-1500
YH-2000
YH-3000
Voltage
48V
60V
72V
72V
Battery model
140
165
180
190
Front wheel
400-12
400-12
450-14
450-14
Back wheel
450-14
500-14
600-16
650-16
Motor power
1000W
1000W
2000W
5000W
Overall sizes
2600*1000*1100mm
3000*1100*1200mm
3300*1100*1200mm
3500*1200*1300mm
Cargo box sizes
1500*1000*400mm
1600*1000*500mm
1600*1000*500mm
1800*1200*500mm
Dead weight
550kg
650kg
720kg
810kg
Rotating speed
3500r/min
Operating speed
15-20km/h
Charging time
First is 12h, normal 8h
Operation time
8 to 12h on a full charge
Useful:
Electric dump truck operation is simple, only need to turn the switch can achieve forward and retreat. Electric dump truck electric mine car appearance is beautiful, the design is exquisite, the performance is excellent, easy to operate. It is a brick kiln factory, fire resistance factory, flour mill, mineral processing plant, chemical plant, furnace plant, construction site, etc.. Resident communities, streets, sanitation gardens, tunnel projects, etc. transport garbage, earthworks, construction equipment; Red brick factory, brick factory used to transport coal, cinder, slag, clear kiln slag, clear road; Farm transportation feed, waste removal and other ideal, energy-saving and environmentally friendly green transportation tools.
Detailed images:

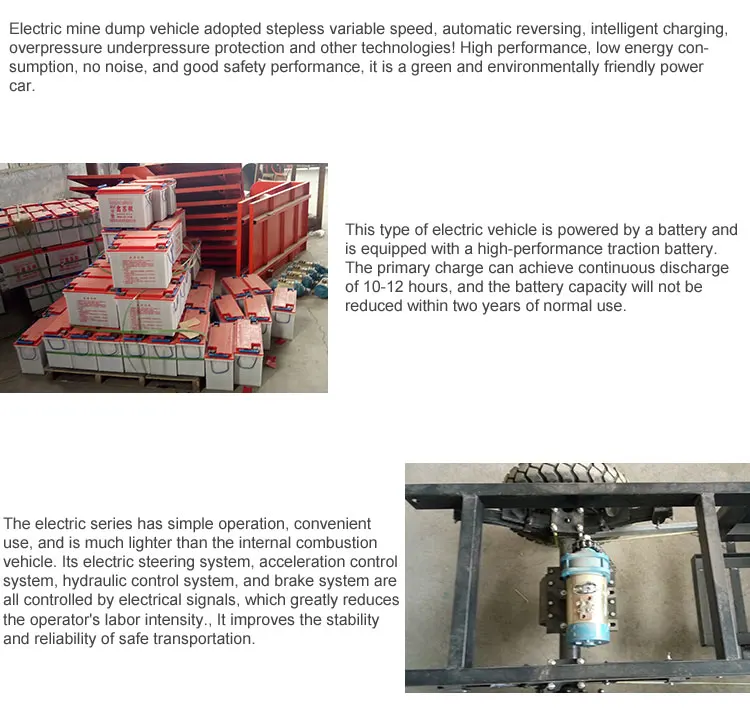

Electric mine vehicles, electric batteries for energy, electric motors to carry out the work of the mine electric transport vehicles. Electric mining vehicles can transport ore in the mine, clean up slag, transport tools, personnel and so on. Electric mining vehicles are energy-efficient, environmentally friendly, do not heat up, do not smoke, and have no noise. They can effectively solve the environmental pollution of diesel locomotives during underground and tunnel operations and other environmental hazards to construction personnel.
Analysis of electric mine vehicle benefit:
the consumption cost of electric energy is much lower than that of diesel or liquefied petroleum gas. The same load of electric dumpers and diesel dumpers, the internal combustion vehicle uses 10 liters of oil per day, about 46 yuan, and the electric car uses 6-7 degrees per day to use electricity, about 4-7 yuan, each day. Save 39-42 yuan. Calculated on the basis of 250 working days a year, it can save 10,000 yuan in energy costs a year. If calculated using 5 years, you can save 50,000 yuan.
