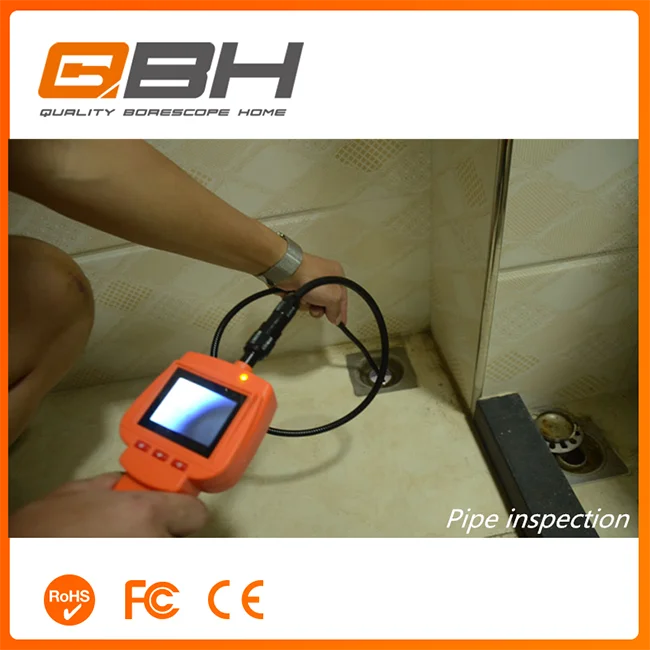

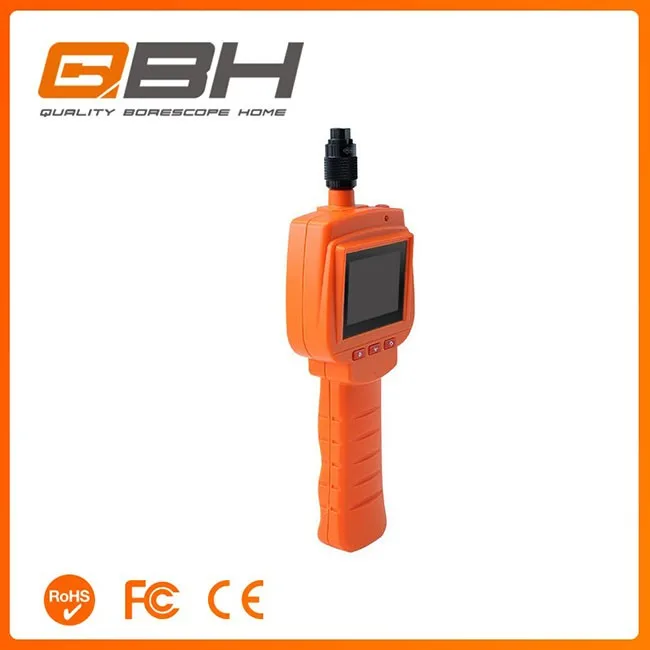

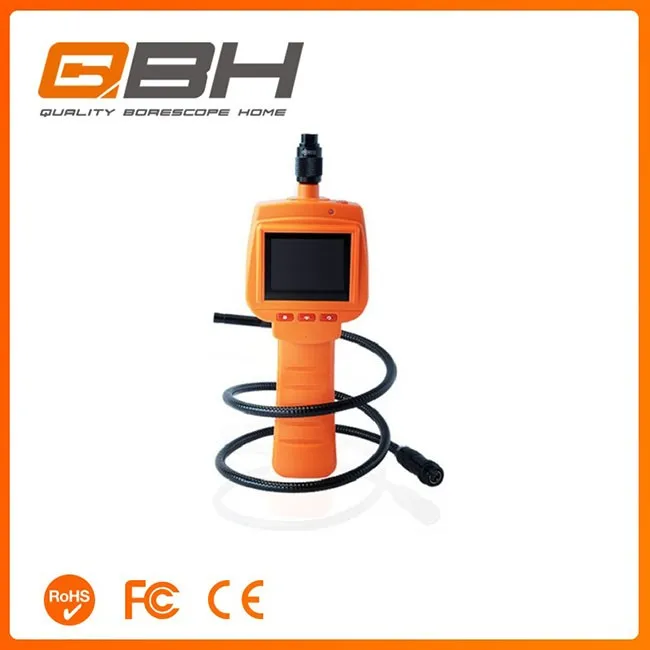

Inspection Camera Electronic Multifunctional Videoscope Auto Maintenance Workshop Tools
Inhouse product
inspection camera electronic multifunctional videoscope auto maintenance workshop tools
Custom Tube Length, Waterproof IP67;
Detached Snake Tube, Lens Optional;
Offering Wholesale Price;
Professional OEM/ODM Services;
Providing Customized Service;
FCC,CE and Rosh Certifications;
| Specification | |||||||

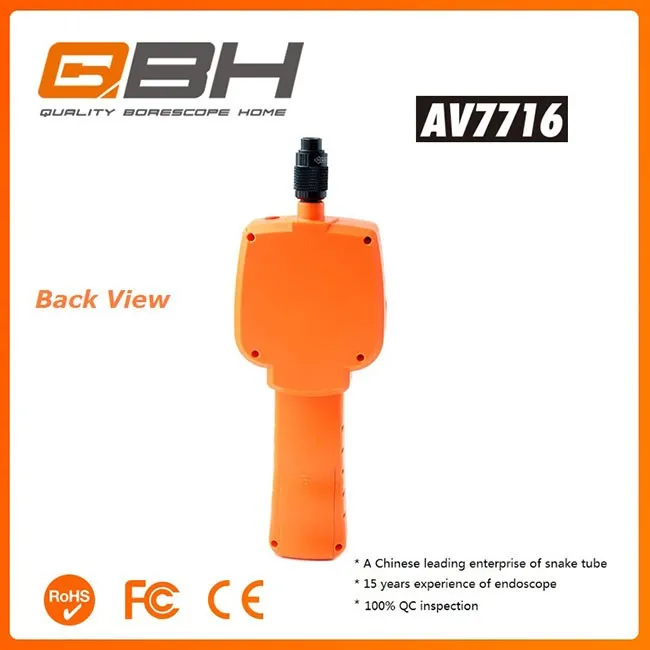

| Item NO. | AV7716/3.9mm | ||||||
| Image Sensor | VGA CMOS Sensor, Sensor area 1 /18" | ||||||
| Effective Pixel | 320(H)x240(V)(NTSC) | ||||||
| Focus distance | 20mm-60mm | ||||||
| View angle | 60 degree Fov(D) | ||||||
| Probe diameter | Φ3.9mm | ||||||
| LED illumination | 2 lamps, illumination can be adjustable in 6 levels | ||||||
| Item NO. | AV7716/5.5mm | ||||||
| Image Sensor | VGA CMOS Sensor, Sensor area 1 /12" | ||||||
| Effective Pixel | 720(H)x625(V)(P)/720(H)x525(V)(N) | ||||||
| Focus distance | 30mm-80mm | ||||||
| View angle | 60degree Fov(D) | ||||||
| Probe diameter | Φ5.5mm | ||||||
| LED illumination | 4 lamps, illumination can be adjustable in 6 levels | ||||||
| Item NO. | AV7716/9.0mm | ||||||
| Image Sensor | VGA CMOS Sensor, Sensor area 1 /10" | ||||||
| Effective Pixel | 720(H)x576(V)(P)/712(H)x480(V)(N) | ||||||
| Focus distance | 30mm-80mm | ||||||
| View angle | 60degree Fov(D) | ||||||
| Probe diameter | Φ9.0mm | ||||||
| LED illumination | 4 lamps, illumination can be adjustable in 6 levels | ||||||
| Item NO. | AV7716/17mm | ||||||
| Image Sensor | VGA CMOS Sensor, Sensor area 1 /4" | ||||||
| Effective Pixel | 720(H)x576(V)(P)/712(H)x480(V)(N) | ||||||
| Focus distance | 30mm-80mm | ||||||
| View angle | 60degree Fov(D) | ||||||
| Probe diameter | Φ17mm | ||||||
| LED illumination | 4 lamps, illumination can be adjustable in 6 levels | ||||||
| Host | |||||||
| Screen | 2.4” TFT LCD QVGA 480*234 16M color | ||||||
| Function | Image can be displayed with 180 degrees rotating | ||||||
| Real time clock with photo and video | |||||||
| LCD screen illumination can be adjustable in 3 levels | |||||||
| image dynamic monitoring (motion detecting) function | |||||||
| Automatic recognition of NTSC/PAL | |||||||
| Ten minutes without operation, automatic closure of TFT into power saving mode | |||||||
| Language | English, French, German, Italian, Spanish,Portuguese, Simplified Chinese,,Japanese,Korean, Russian | ||||||
| Host | Voltage:5V | ||||||
| Working Current:600ma | |||||||
| Charger/Power | Output voltage:5V | ||||||
| Input voltage:110-220V | |||||||
| Input current:2A | |||||||
| Power:4 x AA Battery, power can support by 4-5 hours | |||||||

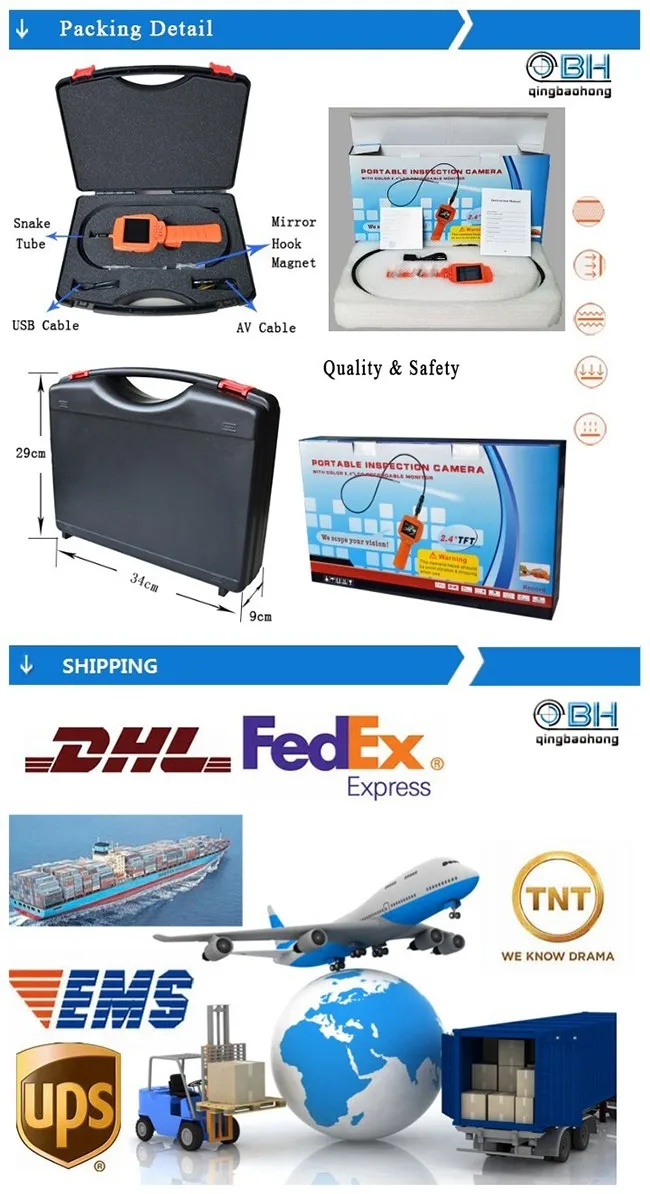

| Standard Accessory | 1 X Adapter,1X USB Cable, 1XAV output Cable | ||||||

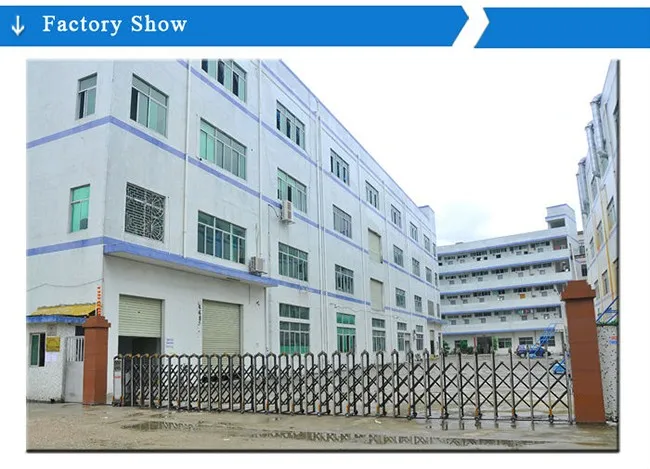

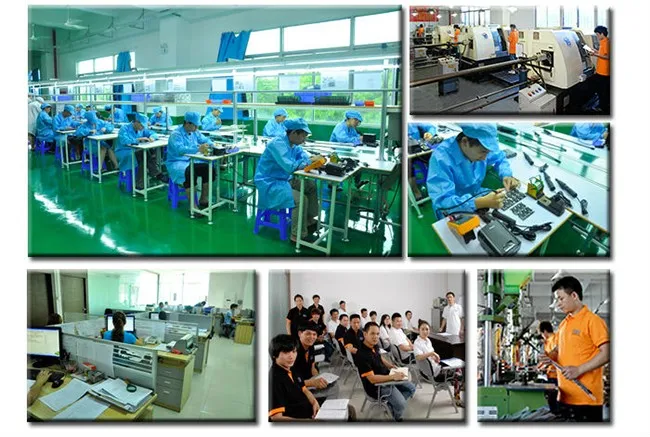

Shenzhen QBH Technology Development Co.,Ltd
is seized of R&D,manufacturing
international trading three in one high technology developing enterprise. QBH is a
professional manufacturer of video borescope,industrial endoscope,inspection
camera for years in Shenzhen,China.
QBH three strong features:
1.Professional OEM/ODM services are available, provide help for Emerson(USA) to develop the new endoscope inspection camera head.
2. Possess of more than 10 patent products,such as we design and develop 4 ways articulating electronic control video inspection system
and HD USB magnification manual focusing endoscope.
3.Providing customized service such as various camera head with different dimension and length, even metal coupling connectors.
The exhibition information
QBH Technology has already taken part in several times of HKTDC Electronics Fair(Spring/Autumn) from Spring of 2012. We will go on to have the show in the future.
We are sincerely welcome your visiting!
FAQ
1. Q: What about the warranty? Is it waterproof?
A: The warranty period is 12 months. The camera is waterproof (Ip67), oil, acid, alkali resistance as well.
2. Q: How long can the borescope work?
A: It depends on the battery situation, a full power lithium battery can work for 1-1.5 hours, 4 AA battery works 0.5-1 hour(normal AA battery or High Energy alkaline battery.
3. Q: How to use the camera?
A: Please follow the instruction of the model, there are installation process, the usual maintenance guidelines etc, to help the users know how to use and keep them. Especially, the camera is optical product, sensitive and fragile, please don't avoide the camera head from dropping or collision.
4. Q: How long can I record?
A: This depending on the capacity of mini SD/ TF card. The borescope maxium support 32G.
5. Q: What's the payment and the delivery time?
A: Master card, TT, Paypal, Western Union, Escrow, LC are acceptable; about the delivery time, it bases on the quantity and the order is OEM/ODM or not, normally, we are providing a lead time of 7-15 business days, DHL, Fedex, UPS,TNT international express would insure the products arrived in your address as soon as possible.
6. Are you manufacturer or trader?
A:Of courese,we are professional leading manufacturer of borescope industry in china.

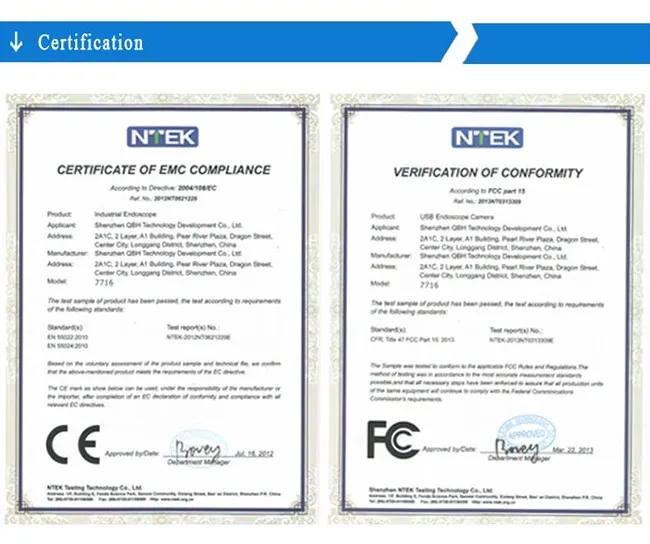

7. Do you have any certifications?
A:Yes,we have CE,FCC and ROSH.
