Phison E18 Pcie Ssd Gen 4x4 Nvme M.2 2280 Ssd De 4tb For Desktop Pc Laptop
(0
reviews)
Estimate Shipping Time:
3 Days
Sold by:
Inhouse product
Inhouse product
Price:
$49.90
/Pc
Refund:
Share:
Top Selling Products

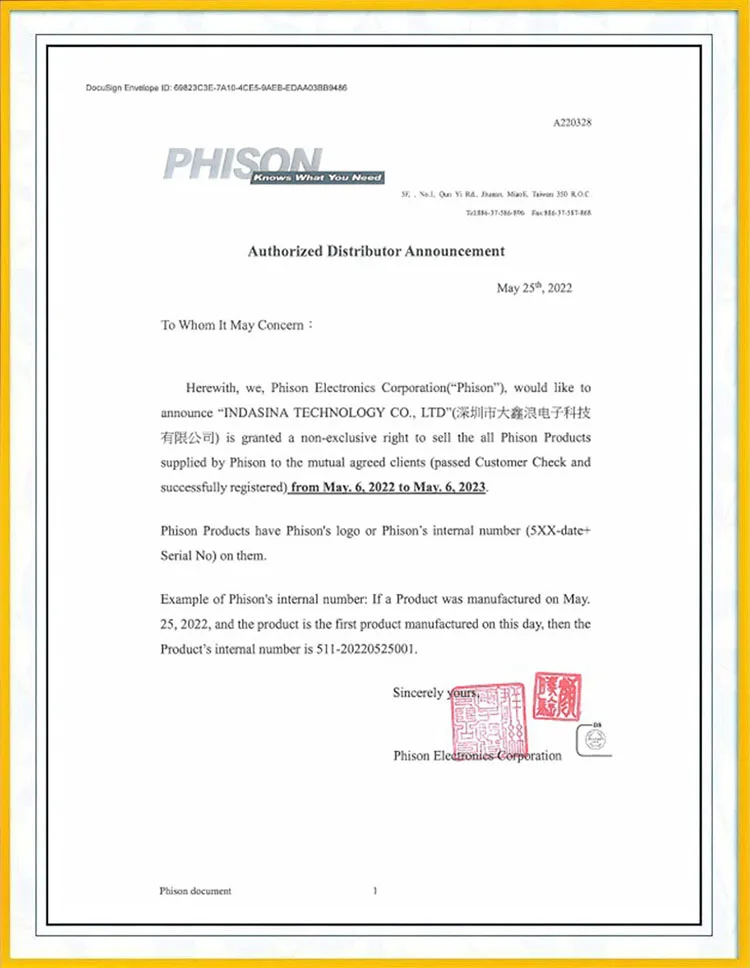

We are Agent of Phison
Certifications

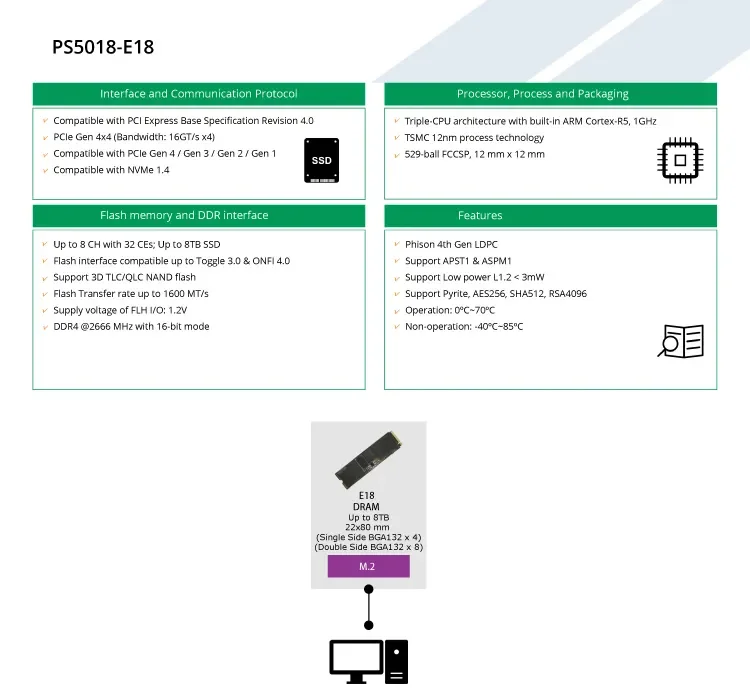

Specification
Controller PS5018-E18 | PS5018-E18 | |
Features | Specifications | |
Host Interface | ‧PCIe Gen 4x4 (Bandwidth: 16GT/s x4) ‧Compatible with PCIe Gen I(2.5Gbps), Gen II(5Gbps), Gen III(8Gbps), Gen IIII(16Gbps) ‧Compliance with PCI Express Base Specification Revision 4.0 ‧Compliance with NVMe 1.4 | |
Processor | ‧Triple-CPU architecture with built-in Arm Cortex-R5 ‧TSMC 12nm process technology | |
Flash Controller | ‧Up to 8 Channels with 32 chips enable (CE) ‧Flash transfer rate up to 1600MT/s ‧Capacity up to 8TB ‧Support 3D TLC and QLC NAND flash memory ‧Compliance with Toggle 4.0 and ONFi 4.2 ‧Flash I/O operating voltage supply 1.2V/1.8V | |
DRAM Controller | ‧DDR4 (32 bit, 2666Mbps) | |
Data Reliability | ‧Phison 4th generation LDPC ECC & RAID ECC ‧DDR ECC engine ‧End-To-End Data Path Protection | |
Security | ‧Pyrite ‧AES 256 ‧SHA 512 ‧RSA 4096 ‧TCG Opal | |
Performance | ‧Sequential Read up to 7400MB/s ‧Sequential Write up to 7000MB/s ‧4K Random Read up to 1000K IOPS ‧4K Random Write up to 1000K IOPS | |
Power Management | ‧ L1.2 < 5mW | |
Temperature Range | ‧Operating range: 0~70°C ‧Storage range: -40~85°C ‧Operating junction temperature: -40~125°C | |
Package | ‧529-ball FCCSP, 12 mm x 12 mm | |
Peripheral | ‧Built-in internal thermal sensor ‧GPIO pins ‧Built-in UART function ‧I2C and SPI for external ROM | |
Solutions PS5018-E18 | ||||||||||||
Capacity | 500GB | 1000GB | 2000GB | 2000GB | 2048GB | 960/1024GB | ||||||
Interface | PCIe Gen4x4 NVMe 1.4 | |||||||||||
Form Factor | M2 2280 - S2 | M2 2280 - D2 | ||||||||||
NAND Flash | 3D TLC | |||||||||||
Performance (UP to) | ||||||||||||
Sequential Read | 6500 MB/S | 7000 MB/S | 5000 MB/S | 7000 MB/S | 2500 MB/S | 550MB/S | ||||||
Sequential Write | 2850 MB/S | 5500 MB/S | 4400 MB/S | 6850 MB/S | 2100 MB/S | 500MB/S | ||||||
4K Random Read | 170K IOPS（*a） | 350K IOPS (*a) | 750K IOP（*a） 600K IOP（*b） | 650K IOPS （*a） | 295K IOPS | 90K IOPS | ||||||
4K Random Write | 600K IOPS （*a） | 700K IOPS（*a） | 750K IOPS (*a) 600K IOPS (*b) | 700K IOPS （*a） | 430K IOPS | 85K IOPS | ||||||
Power | ||||||||||||
Supply Voltage | M.2 3.3V ±5% | |||||||||||
Active(Average) | 6.0W | 6.6W | Read: 6.7W Write: 6.6W | 8.2W | 3.75 W | 2100 mW | ||||||
Idle | / | 320 mW | 320 mW | 335 mW | ||||||||
Low Power PS4（L 1.2） | 3 mW | 3 mW | 2 mW | 3 mW | 2 mW | |||||||
Temperature | ||||||||||||
Operating | 0°C-70°C | |||||||||||
Non-Operating | -40°C-85°C | |||||||||||
Advanced Features | ·Pyrite Support ·End-to-End Data Protection ·Thermal Monitoring | |||||||||||
(*a)Performance is based on AMD Gen4 X570 + 8 Core CPU | ||||||||||||
