Model NO. | FG-HD | ||||
Voltage & Frequency | 220-240V 50/60Hz | ||||

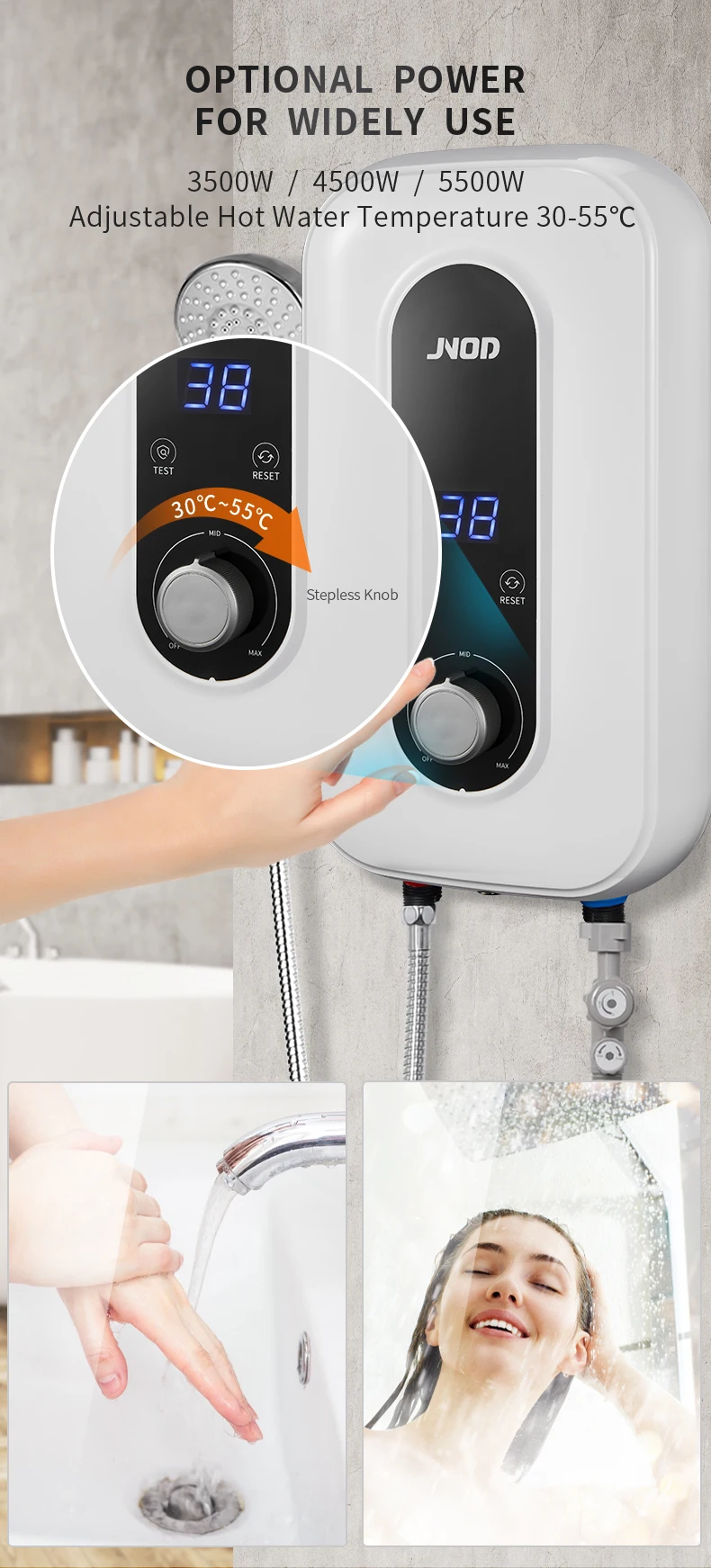

Wattage | 3.5kW | 4.5kW | 5.5kW | ||
Max.Ampere Load | 15.9A | 20.5A | 25A | ||
Temperature Setting Range | 30-55℃ / 86-131℉ | ||||
Rated Pressure | 0.6MPa | ||||
Thermal Cut-off | 95℃ | ||||
Connecting Wires Section | 2.5mm² | ||||
Water Pressure | 0.02-0.6MPa | ||||

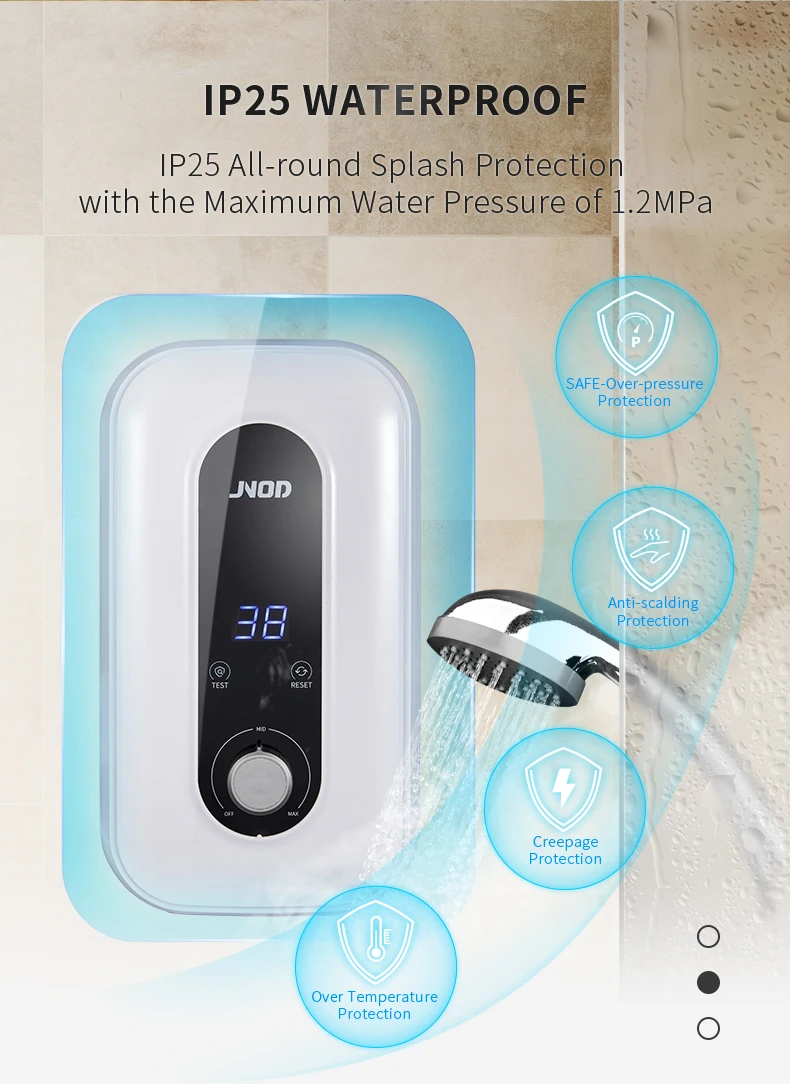

Safety Class | IP25 | ||||
Min.water flow to activate | 1.0 L/min | 1.2L/min | 1.2L/min | ||
Water Connection | G1/2" | ||||
Certification | CE CB | ||||
Colors | Black/ White/ Customized | ||||
Installation | Wall Mounted/ Under Sink/ Above Counter/ Concealed | ||||
Service | OEM/ ODM/ SKD/ CDK Accepted | ||||
Product Size | 380*210*89mm | ||||

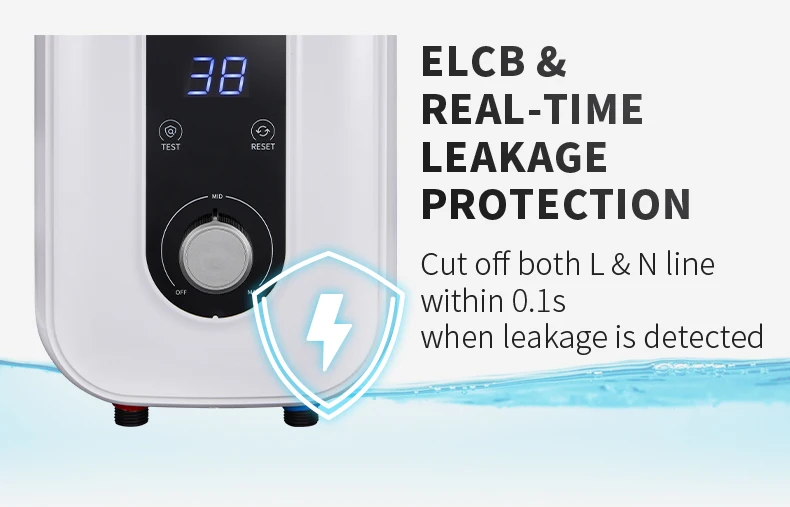

Feature | 1. ELCB leakage protection 2. Built-in pressure relief valve 3. Double relay 4.Constant temperature 5. Stepless rotary knob control with indication light 6. IP25 Waterproof 7. Easy wall mounted installation with only 4 screws 8. Die cast aluminum heating element 9. Upside down installation available |
