4WD 4x4 Double Cab 4 Seats Mini Electric Power Passenger Pick Up Truck | ||
Length × width ×height (mm) | 3655×1340×1560 | |
Internal dimension of container (L×W×H)(mm) | 900×1315×400 | |
Wheelbase (mm) | 2520 | |
Front wheel base (mm) | 1195 | |
Rear wheel base (mm) | 1185 | |
Front suspension (mm) | 455 | |
Rear suspension (mm) | 705 | |
Preparation mass (kg) | 885 | |
Cargo quantity (kg) | 150 | |
Seats | 4 | |
Total mass (kg) | 1245 | |
Performance parameter | ||
Maximum speed (km/h) | 85km/h | |
Acceleration time S (0-40km) | 20 | |
Grade Ability | 35% | |
Minimum turning diameter (m) | ≤9 | |
Maximum turning Angle | 36.3(External) /42(Internal) | |
Angle of approach (°) | ≥55 | |
Departure Angle (°) | ≥35 | |
Minimum ground clearance (mm, no load) | ≥200 | |
Body Structure | ||
Steel Pipe door | Optional | |
Container | Rear open flat container | |
Battery/motor parameters | ||
Power battery Specifications (V/Ah) | 72V ,206Ah - lithium iron phosphate battery | |
lithium battery | ○ 280AH optional | |
Mileage continued (no load)(km) | 120-180KMS | |
Type of battery | lithium iron phosphate battery | |

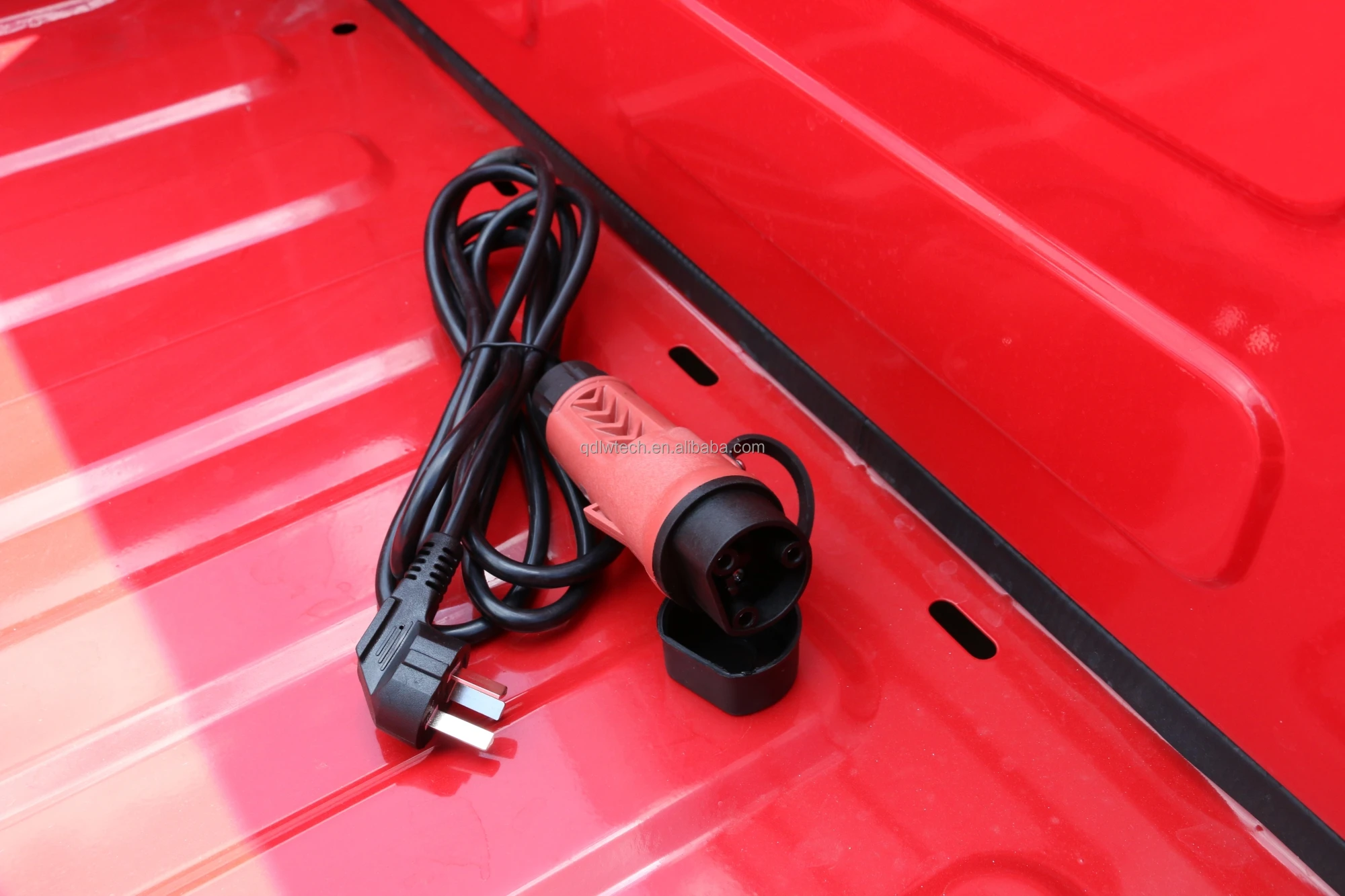

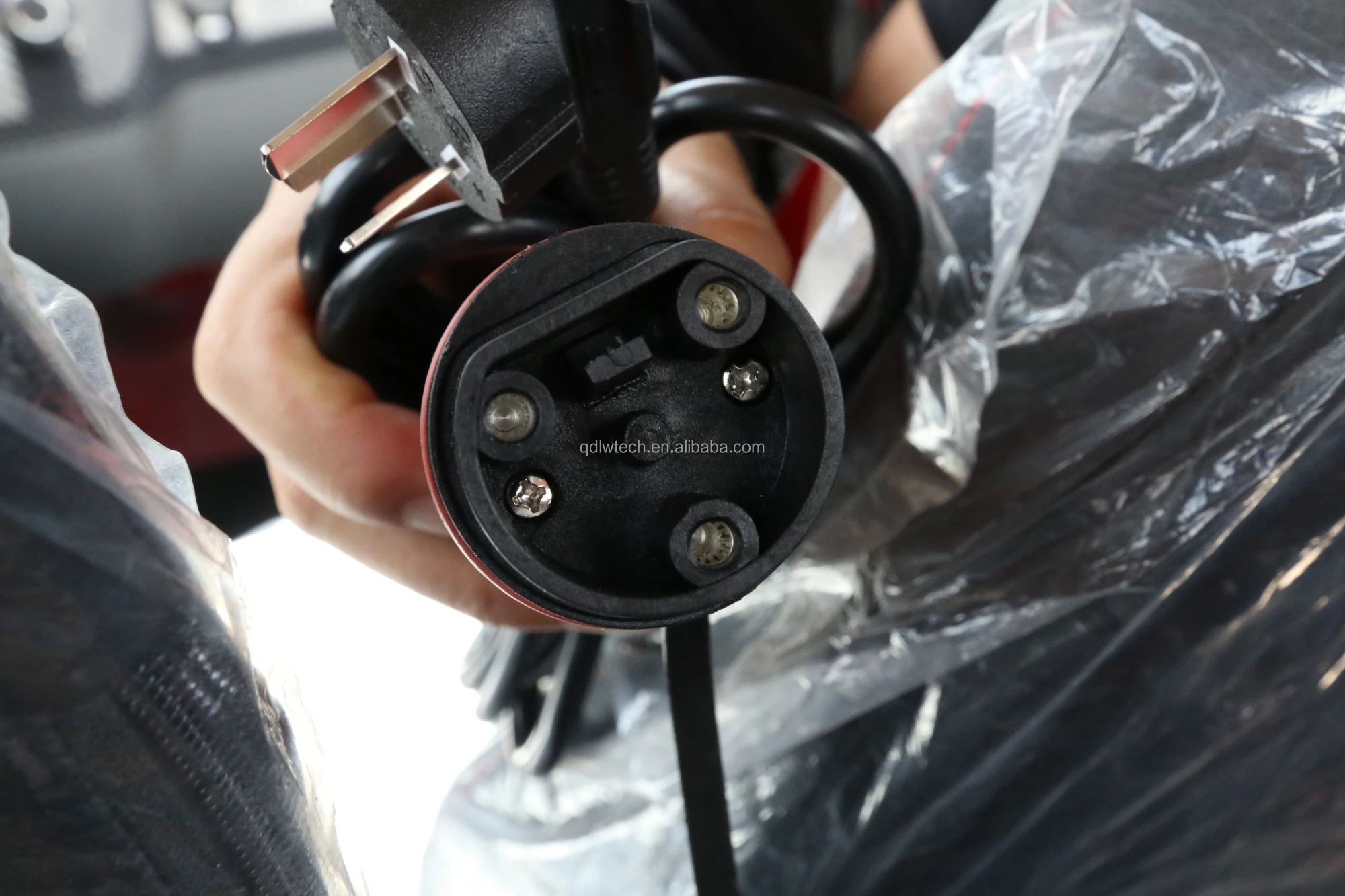

Battery charger | 110 - 220V vehicular(wide voltage) | |
Charging time (h) | 6~8 | |
100km power consumption (KWH) | 6.5 | |

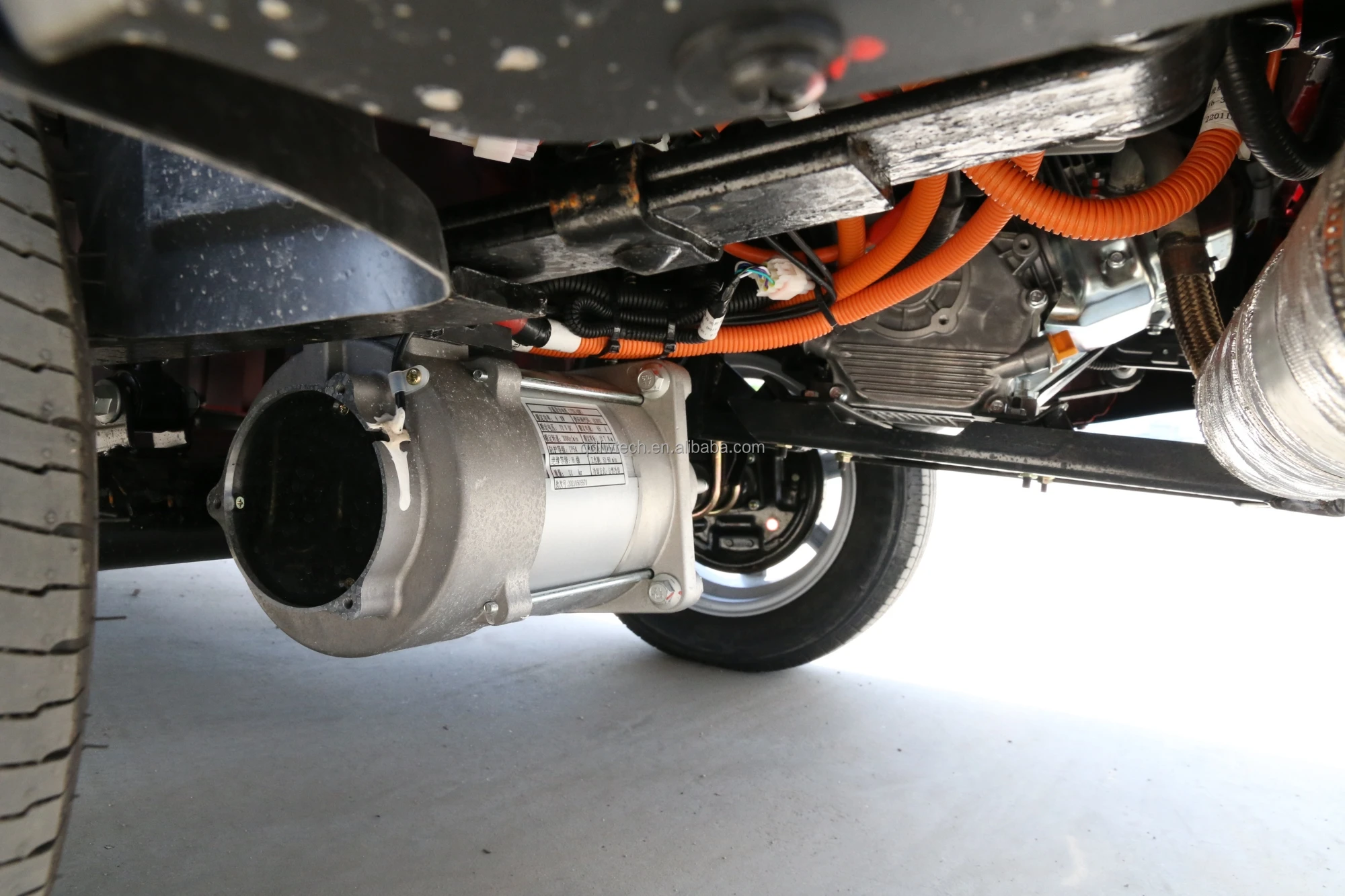

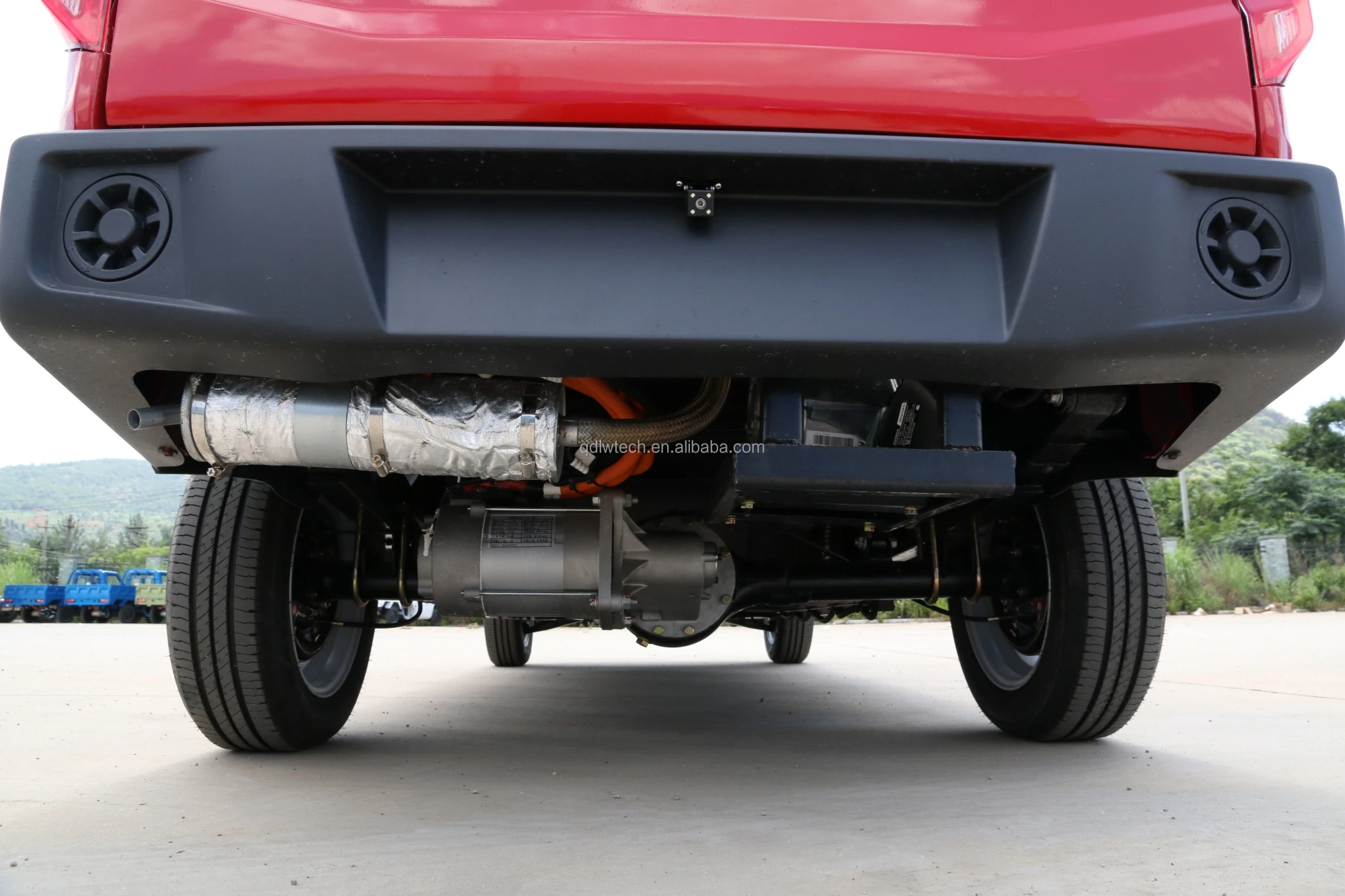

The motor type | Asynchronous motor | |
machine controller | Dual motor controller | |
Motor power (kW) | 10.5 KW | |
Imbor 3527 controller | - | |
Imbor 3528 controller | - | |
Chassis/wheel braking | ||
Driving Mode | Rear/four-wheel drive(4x4 4WD) | |
Front Suspension | Double cross arm helical spring independent suspension | |
Rear Suspension | Vertical plate spring (3 pieces) | |
Drive axle assembly | Front axle 6.77 rear axle 7.99 | |
Front brake | Disc brake | |
Rear brake | Drum brake | |
tyre | Steel wheel 15 Inch | |
Dual aluminum rims and tires | - | |
Black and white aluminum rim + mountain inner and outer tire | - | |
Adventurer aluminum rim + mountain inner and outer tire | - | |
Tyre Size | 195/65 R15 | |
Steering structure | pinion and rack | |
power-assisted steering | ● | |
The brake booster | ● | |
Internal/external configuration | ||
windscreen wiper | ●long | |
spray system | ● | |
door lock | Electric | |

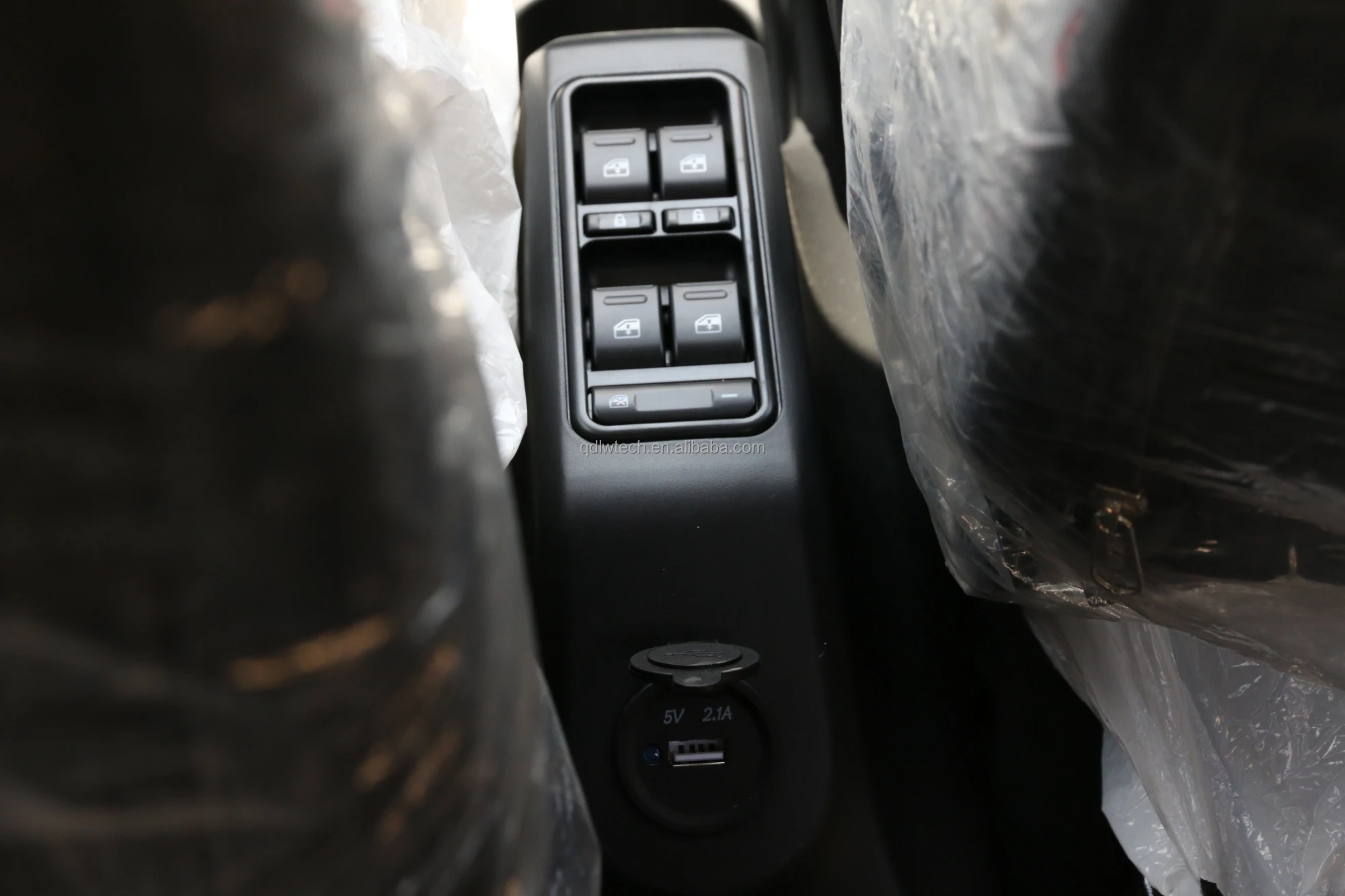

car window | Electric | |

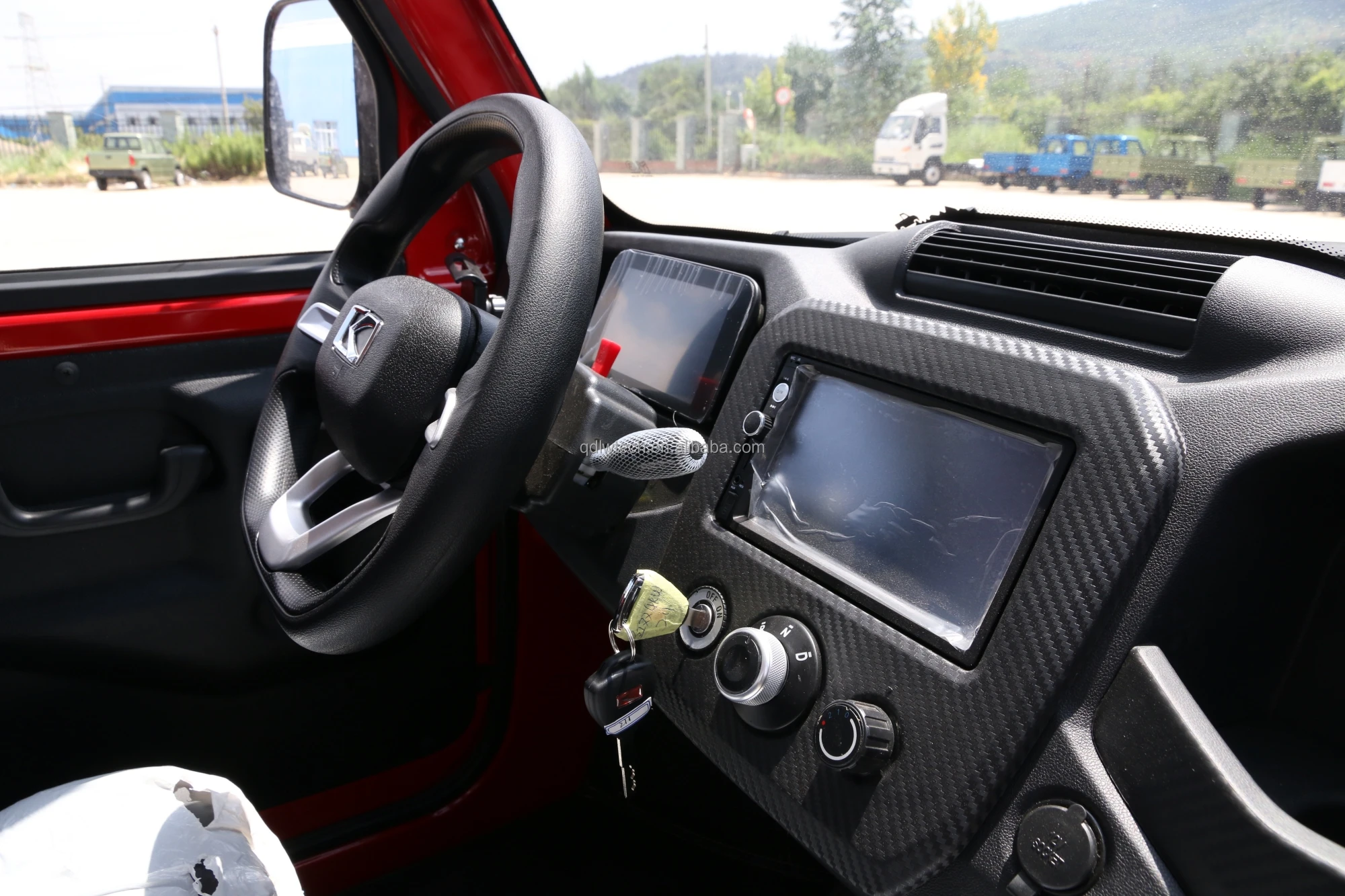

On-board screen | ● | |

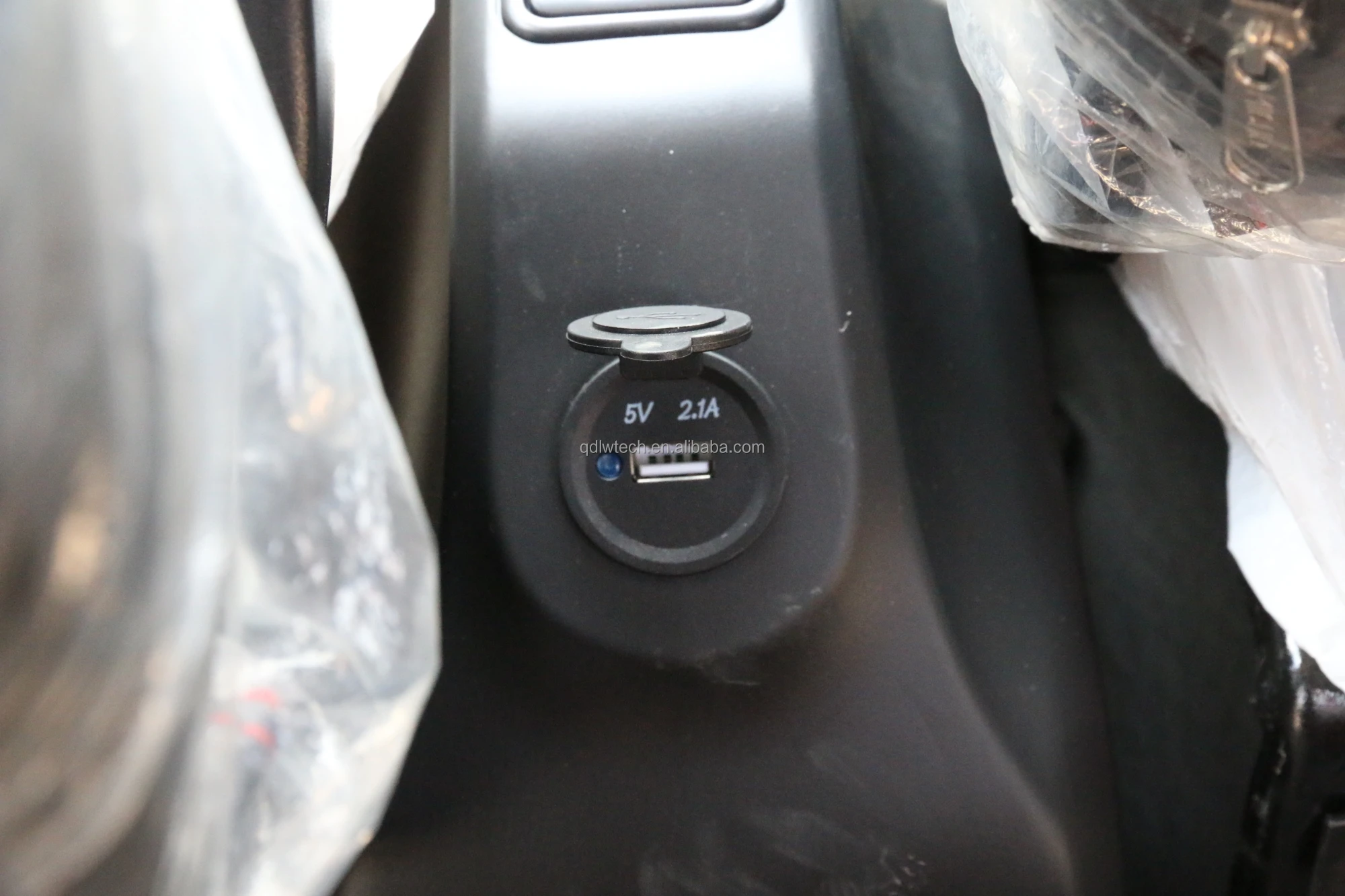

USB Charging port inside car | ● | |
Electric outlet of cigarette lighter | ● | |
combination switch | ● | |

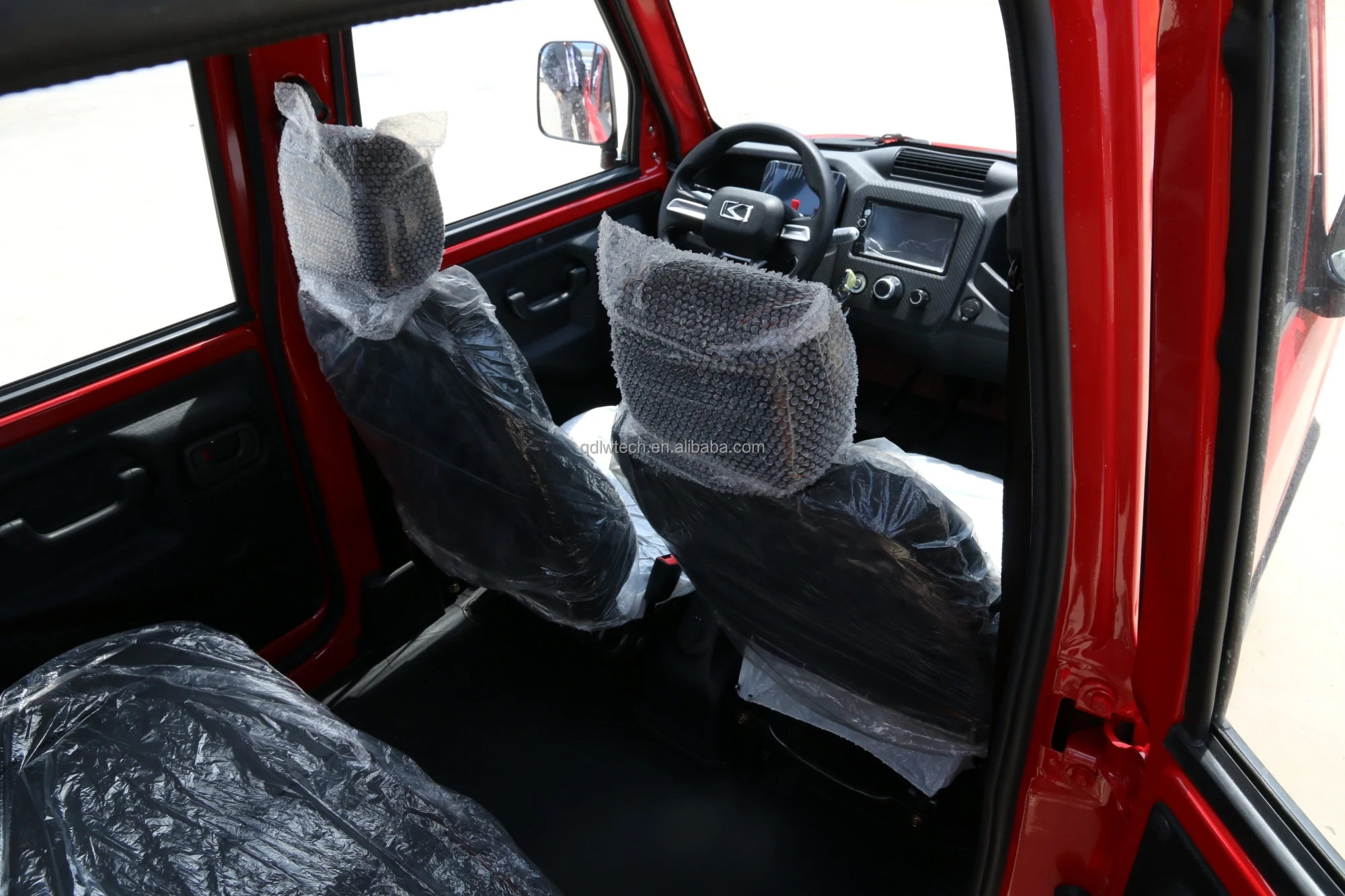

seat type | Four - way adjustable, with headrest, with map pocket | |
Independent seats for master and deputy | - | |

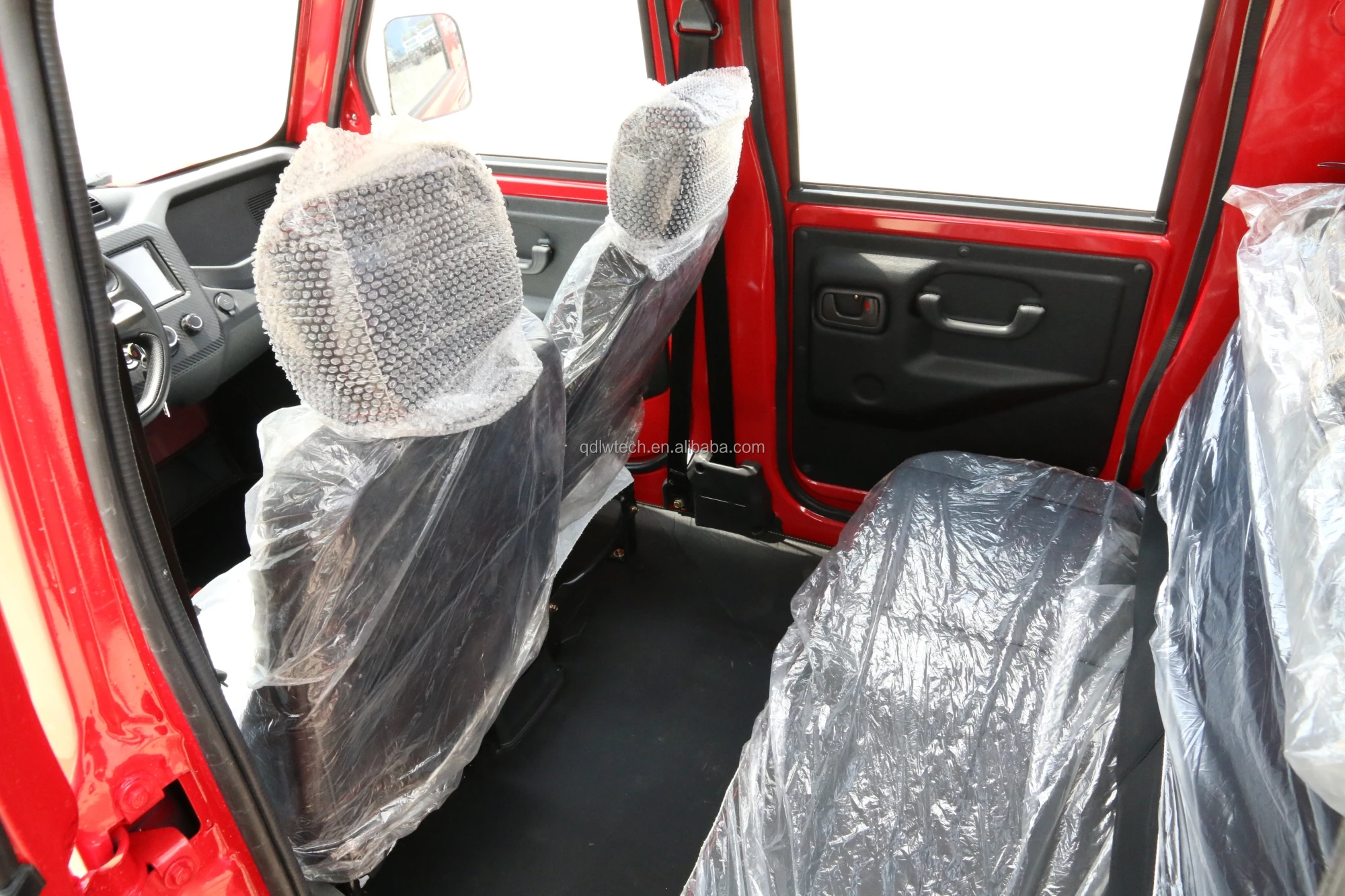

rear seat | Long seat, folding,with head rest | |
Rear seat with headrest | ○ | |
sun shield | driver●/ passengers● | |
Ceiling interior panel | ● | |
The roof rails | 3 | |
warm air blower | ● | |
Refrigeration air conditioner(AC) | ○ | |
Range Extender | ○ optional | |
Towing hook (with signal line) | ○ | |
Interior rearview mirror | ● | |
Dome light | Integrated into the visor | |

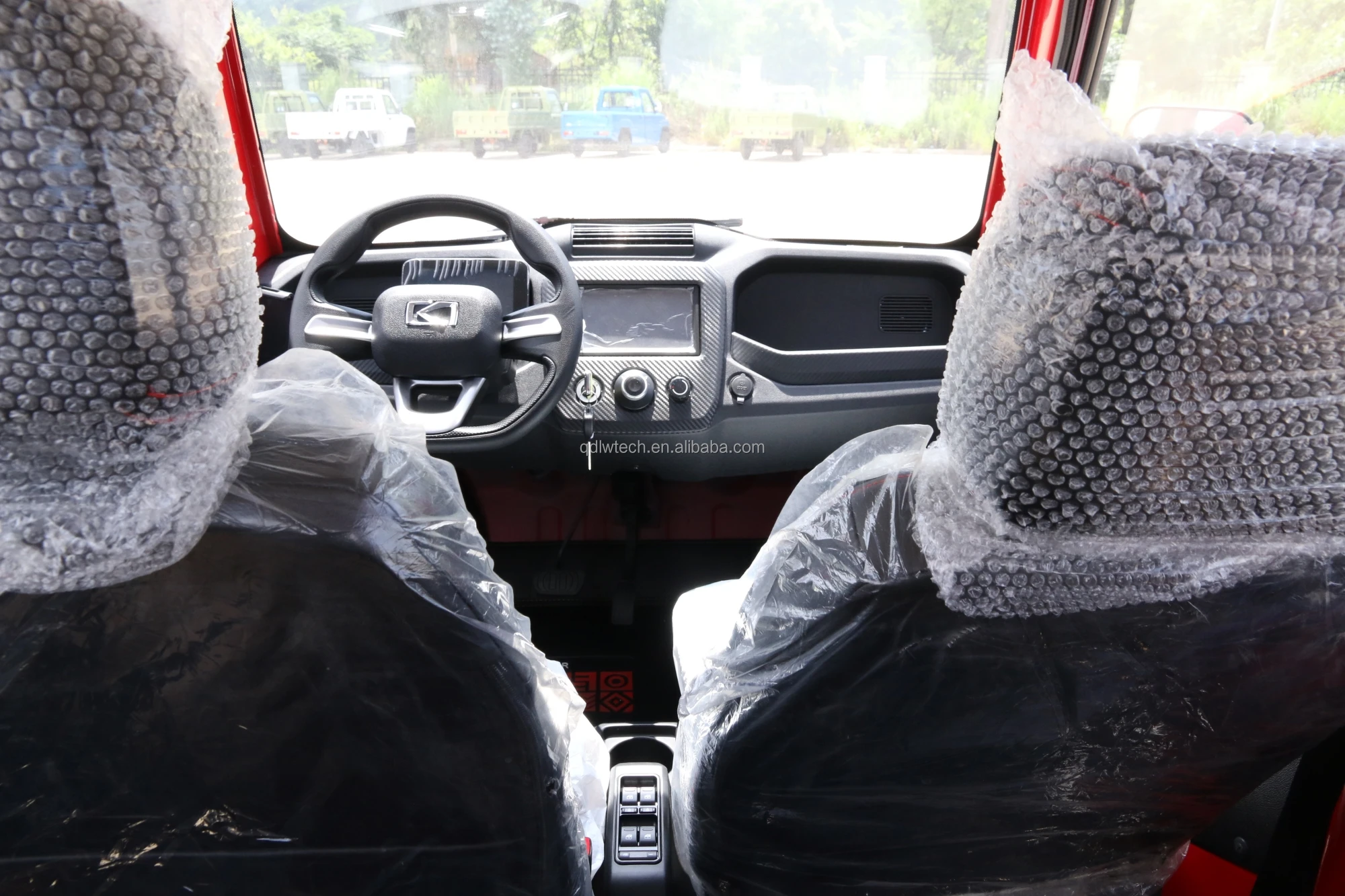

Instrument category | Liquid crystal digital instrument | |
Headlight type | LED | |
Rear lamp type | LED | |
Front Searchlight | ● | |
Spotlight | ● | |
rear registration plate lamp | ● | |
Low speed engine simulator | ○ | |
side reflex reflector | ● | |
safety belt | Main/Auxiliary ● (three-point) | |
Forward engine room storage tank | ●(small) | |

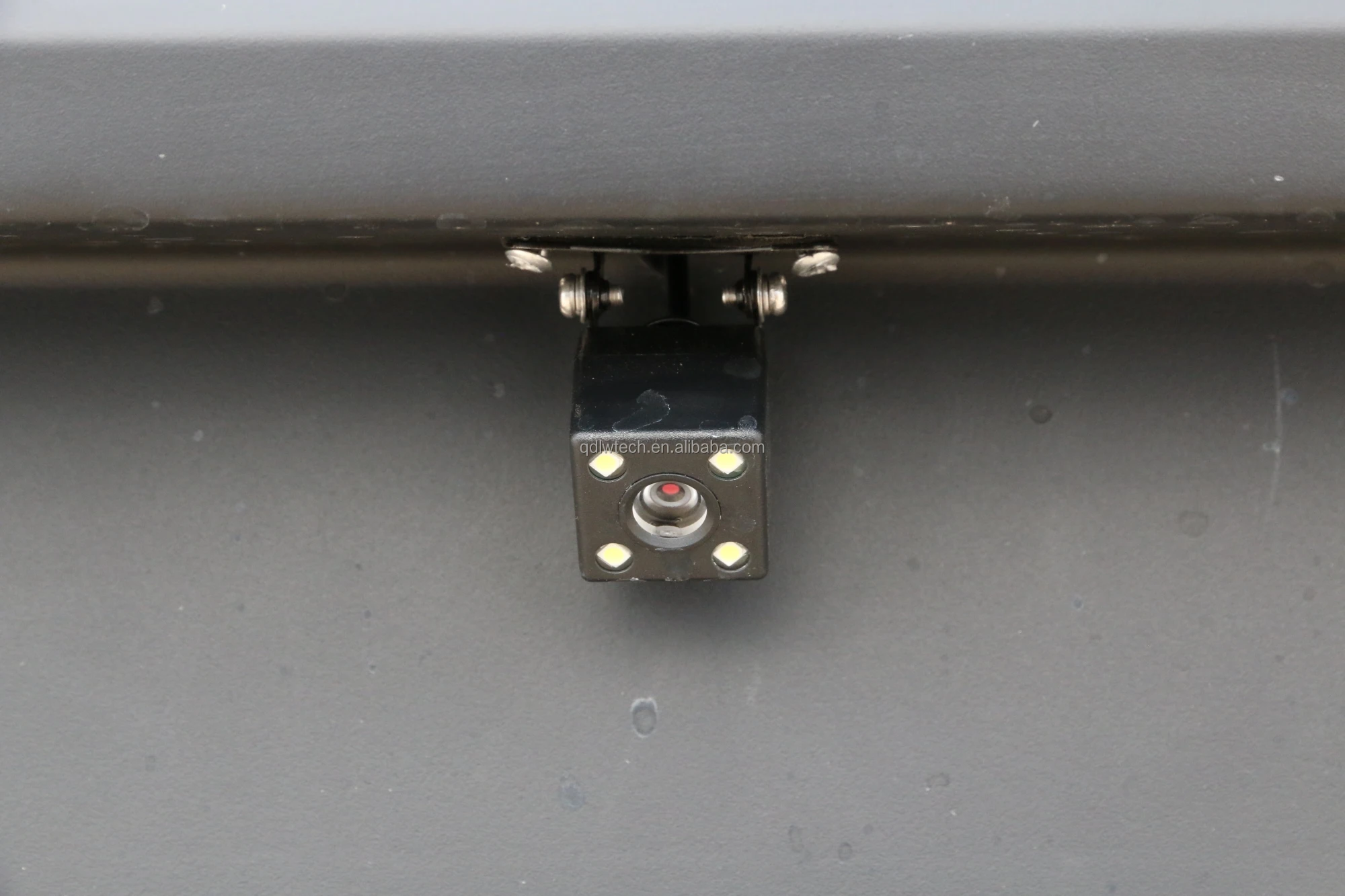

Reverse Camera | ● | |
wheel brow | ○ | |
car cover | ○ | |
headrest | - | |
Container Treasure (polyurea spraying) | ○ | |
child safety lock | ● | |
mobile phone support | ● | |
Front Bumper | - | |
European version front guard bar | - | |
Front guard bar with small and large light bracket without license plate mounting plate | Front baffle with a cut | |
rear bumperr | ● | |
pedal | ● | |
The tail logo | ● | |
DOT mark (Pickman tail) | ● | |
Emark identifier (Pickman tail) | - | |
Roll cage | ● | |
The instrument type | 72 v new instrument | |
110 v battery charger | ○ | |
American standard charger plug | ○ | |
European standard charger plug | ○ | |
British standard charger plug | ○ | |
Italian standard charger plug | ○ | |
British instrument | ○ |
