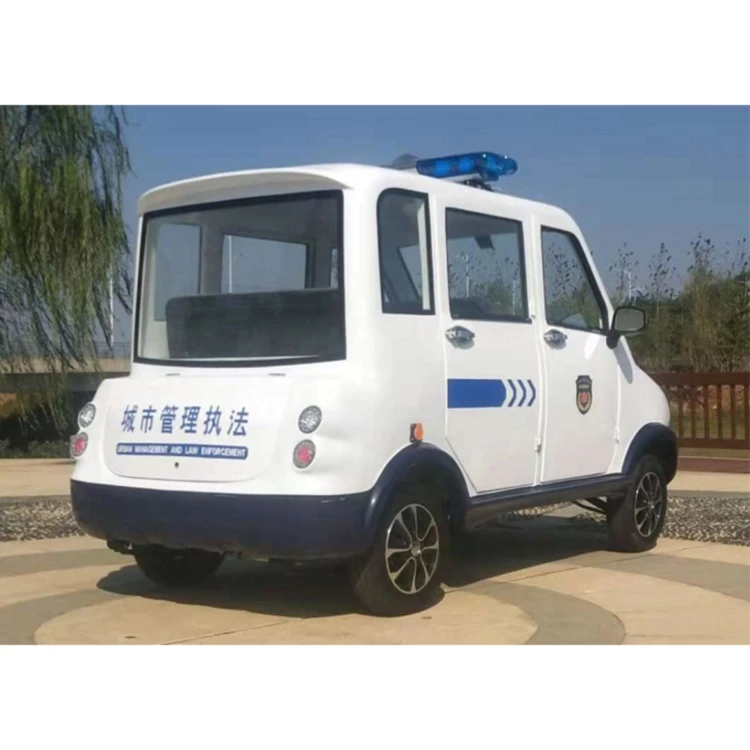

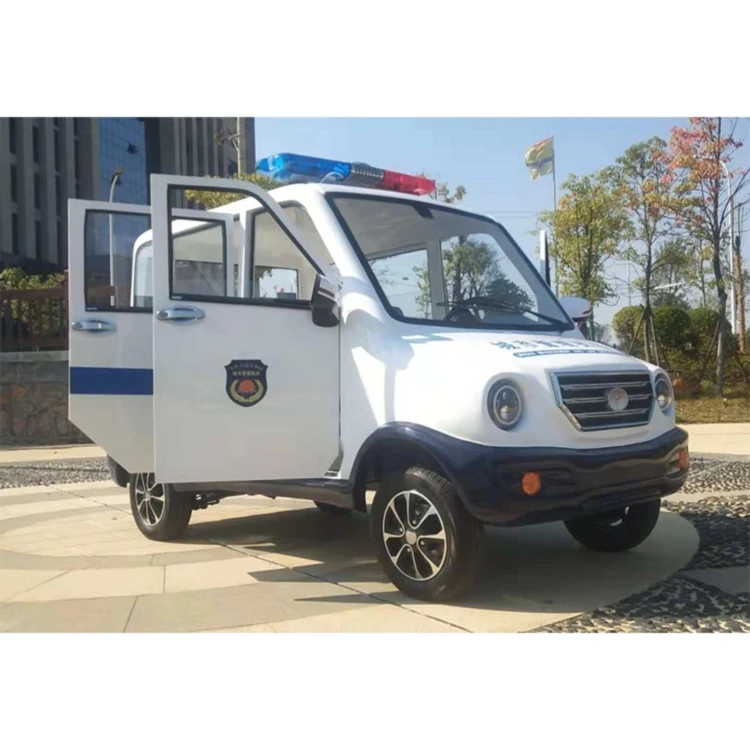

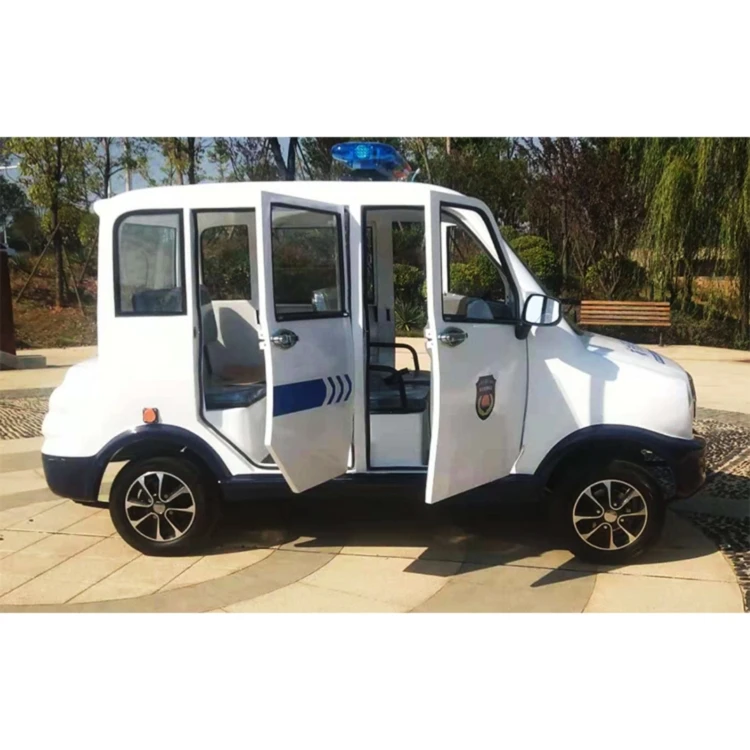

Jialong High Performance 35km/h Classic 5 Seat 72v Closed Electric Patrol Car Nev Battery Electric Vehicles .

JL-FB-CK-5

parameters

Seaters:

5

Size :

3300X1460X1850mm

Front and rear track:

1200/1200mm

wheelbase:

1965mm

weight

630kg

Max speed

35km

Mileage

80-100km

Charge time

6-8h

Max climbing

20 degrees

controller

Dashboard

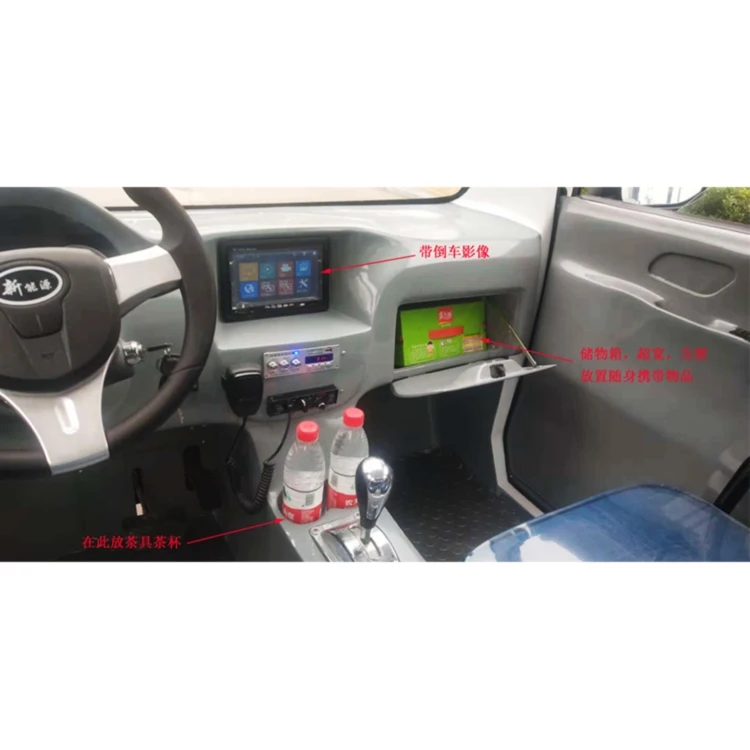

Reversing image, display screen, storage box, water cup holder

Combination instrument

MP5,MP3,USB,LED display

Alarm lamp

Alarm in 4 modes with buzzer

battery charger

72V/25A, Automatic charger

controller

72V/

Traction motor

72V /4KW

Battery

12VV100AH Maintenance free battery

Suspension brake system

air conditioner

Cold and warm

doors and windows

4 hand operated lifting glass doors and windows

Brake system

Air assisted brake

Power steering

Electric power steering

Direction system

Rack and pinion mechanical steering gear

Front axle and suspension

McPherson suspension (Φ 10 coil spring + cylinder hydraulic shock absorption)

Rear axle and suspension

Non independent suspension, integral rear axle, multiple leaf spring

braking system

Front disc and rear drum double circuit hydraulic drum brake and parking brake device

Tyres

Aluminum alloy rims, rims, vacuum tires 145R70/12C

apperance

Paint

The whole car adopts advanced automobile paint, computer paint mixing and professional spraying equipment

Frame + body

High quality carbon square pipe steel welding, antirust paint frame + FRP cladding

Lights and signals

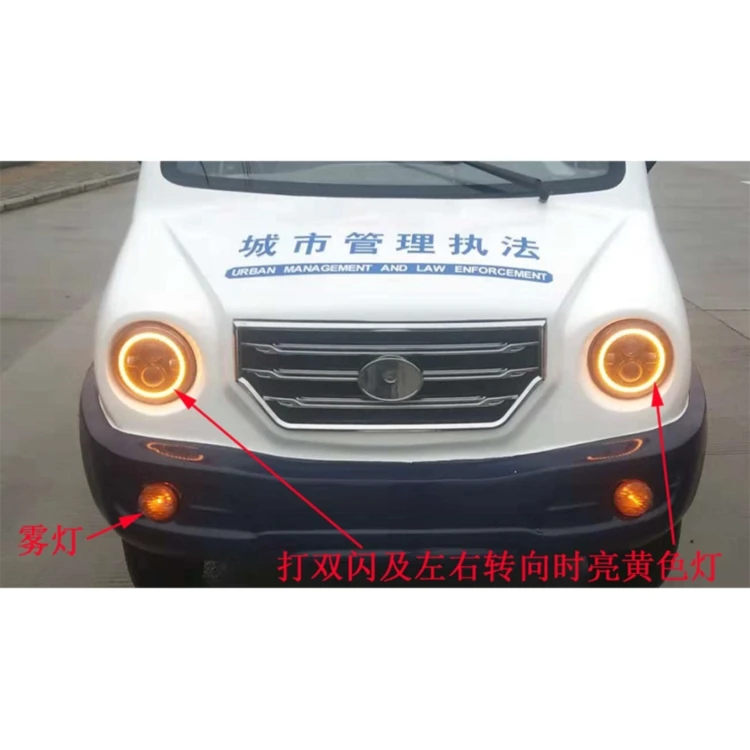

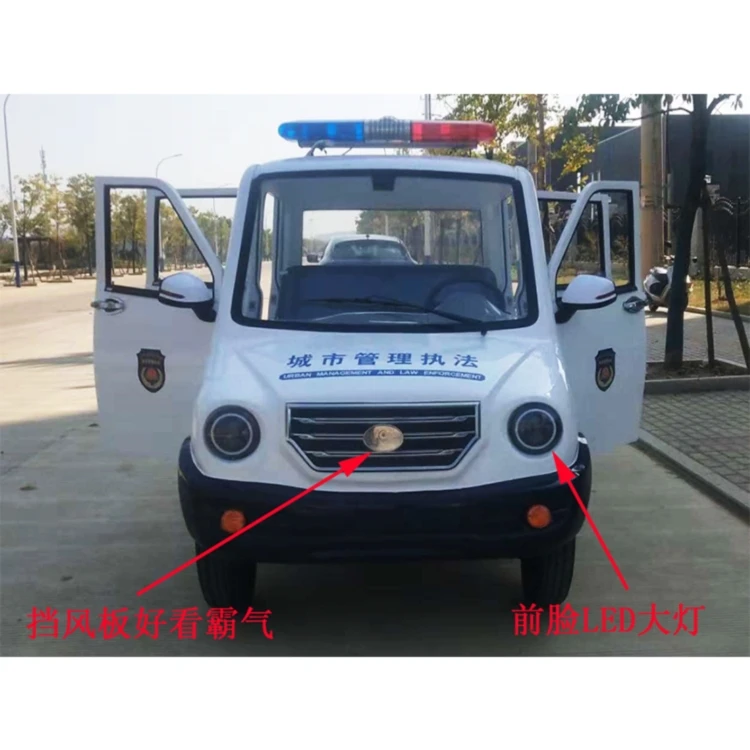

Led mirror, headlamp, daytime running lamp, turn signal, reversing lamp

Car roof

Glass fiber reinforced plastic double-layer hardtop, roof with gutter

trunk

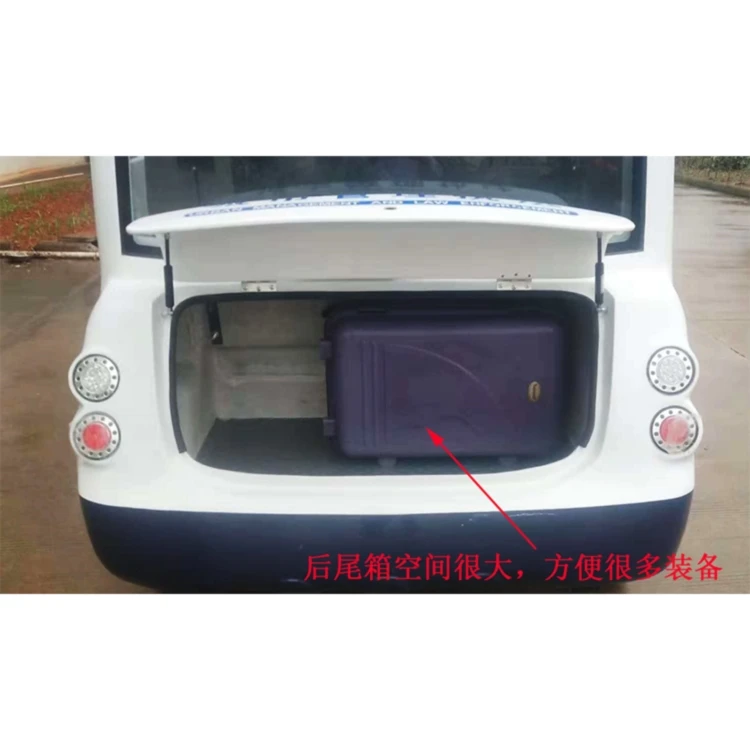

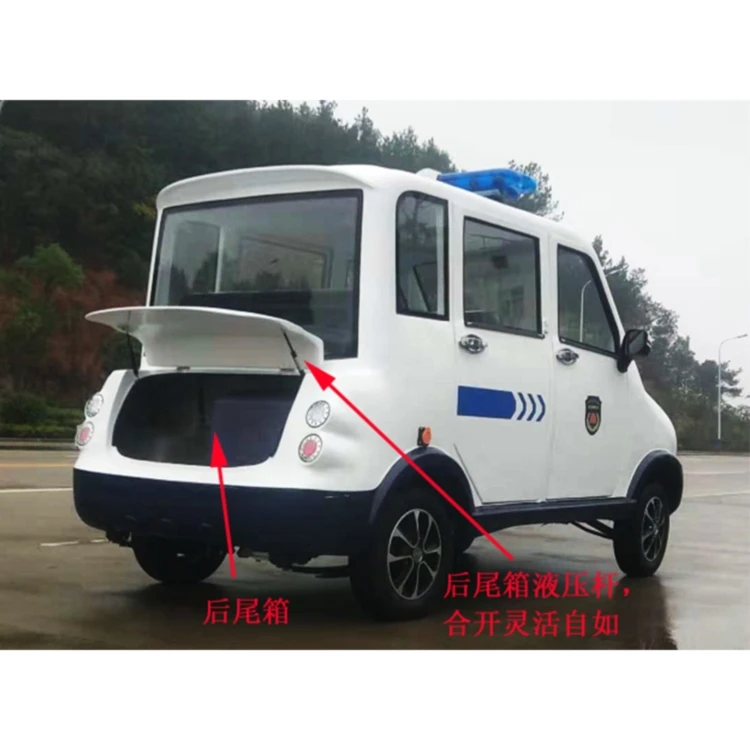

Trunk cover with gas spring strut, super large trunk volume, trunk size1360X580X620

Front windshield

Automotive laminated safety glass

seats

Standard leather seat
