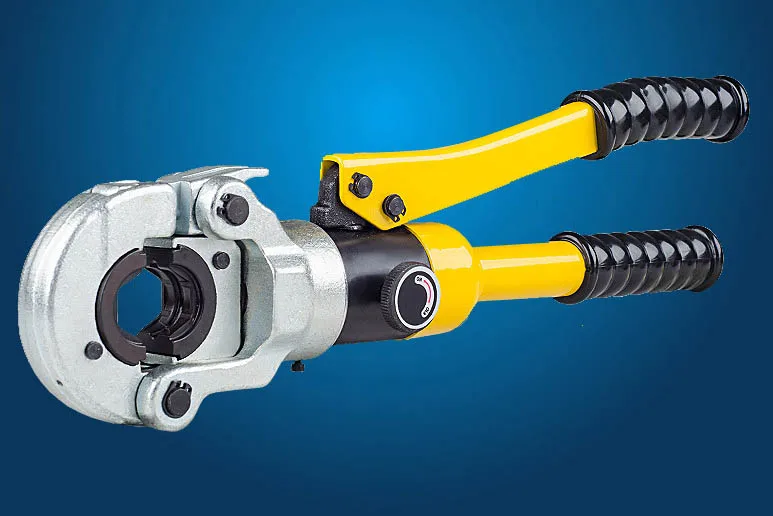

U Type Hydraulic Pex Pipe Aluminum Plastic Pipe Tube Crimping Tool Plier Cw-1632 Hydraulic Compression Tool

Top Selling Products

Sexy Stylish Club Dress Spring Sexy Women Fashion Cut Out Ladies Prom Dress Beaded Evening Dresses

$250.00
Popular Carpet Cleaner Machine Cleaners Portable Spot Cleaner Wet And Dry Vacuum Carpet Washer For Home Carpet

$51.50
Handheld Spot Cleaner For Sofa,Carpet,Car,Home Vacuum Cleaner

$30.00
Factory Wholesale 220v 50/60hz Electric Commercial Dry Foam Seat Cleaning Equipment Sofa Maintainer Carpet Sofa Cleaning Machine

$335.00
Jue-fish Sofa Cleaning Kit Restoring Sofa Deep Cleaner Multipurpose Sofa Portable Cleaner

$1.33
Portable Industrial Woodworking Machinery Wood Dust Collector Vacuum Cleaner For Furniture Factory

$175.00

Description reviews

Specification

Name:	Tube Cutter

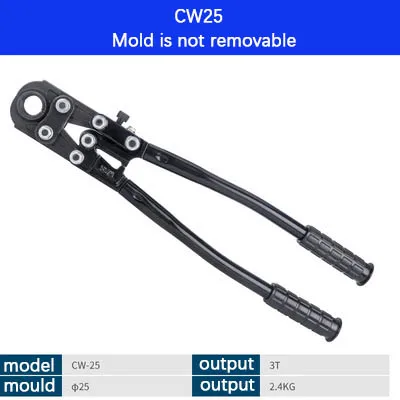

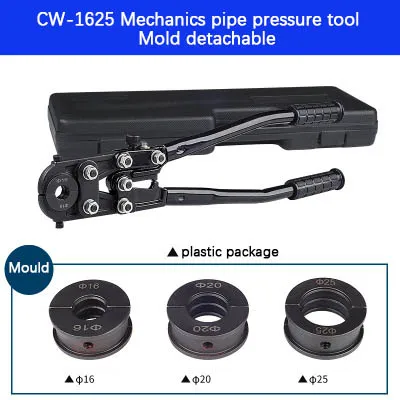

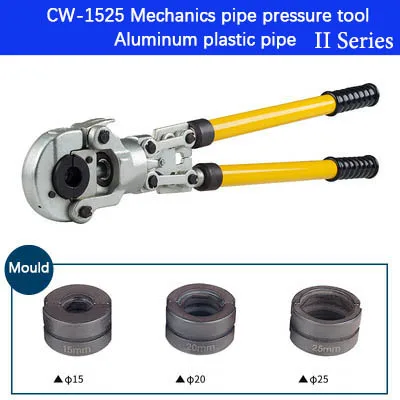

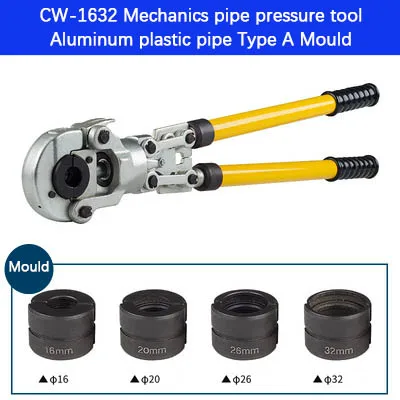

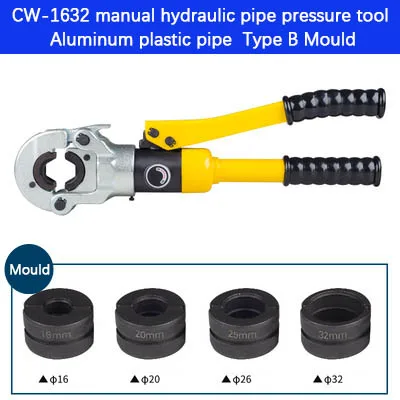

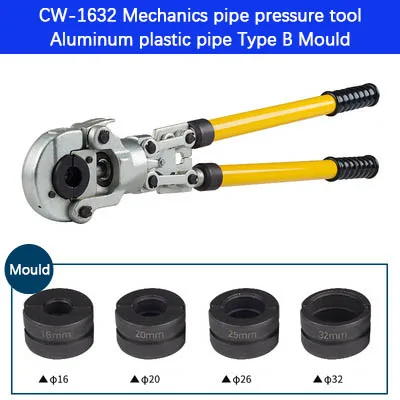

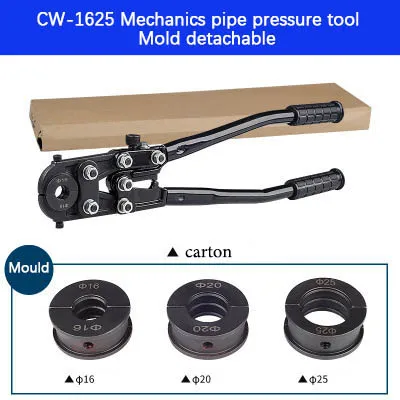

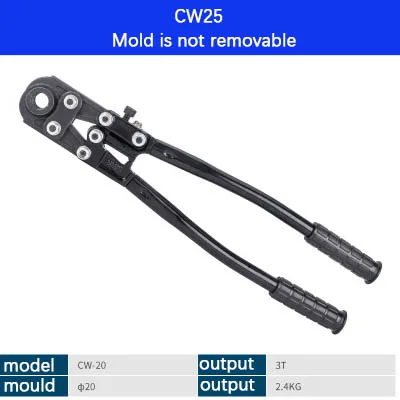

Model Number:	Hydraulic CW-1632 (aluminum plastic pipe B-mold) Hydraulic CW-1632 (aluminum plastic pipe A mold) Hydraulic CW-1525 (stainless steel I series) Hydraulic CW-1525 (stainless steel IIseries) Mechanical CW-1632 (aluminum plastic pipe B mold) Mechanical CW-1632 (aluminum plastic pipe A mold) Mechanical CW-1525 stainless steel pipe mold I Mechanical CW-1525 stainless steel pipe mold II CW-1625 plastic box (pressed aluminum plastic pipe) CW-1625 carton (aluminum plastic pipe) CW-25 dead head pliers CW-20 dead head pliers

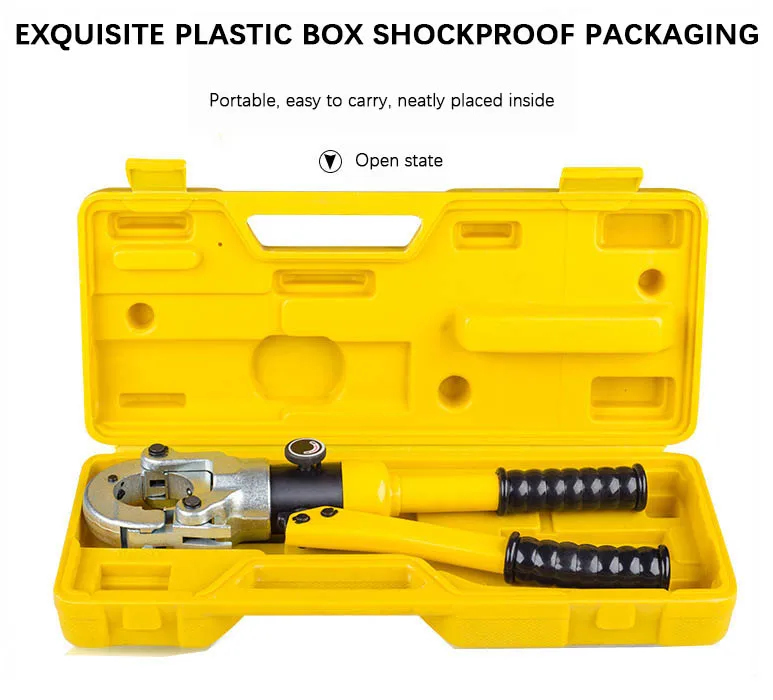

Packing :	plastic box /carton
Certification:	CE
Loading port:	Shanghai or Ningbo
Payment terms:	T/T, LC, Western Union

PRODUCT DESCRIPION

Notice: 1. Please confirm the outer diameter of stainless steel pipe and corresponding table parameters before purchase; 2. Stainless steel pipes are divided into international Series I and II 3. Please note if your stainless steel pipe is Series I or II

Nominal diameter DN	Series I pipe (mm)	II series pipe (mm)	Wall thickness of pipe fittings (mm)
DN15	16	16	0.8
DN20	20	22.2	1
DN25	25.4	28.6	1
DN32	32	34	1.2
DN40	40	42.7	1.2
DN50	50.8	48.6	1.2
DN65	76.1	76.1	1.8
DN80	88.9	88.9	1.8
DN100	101.6	108	1.8

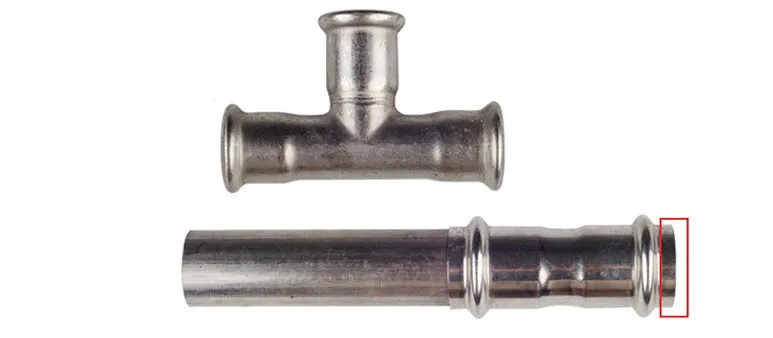

Single card double card Press Tube piece different from double cassette Socket Excess steel pipes are reserved (i.e. place selected in red box), anyway Single card none

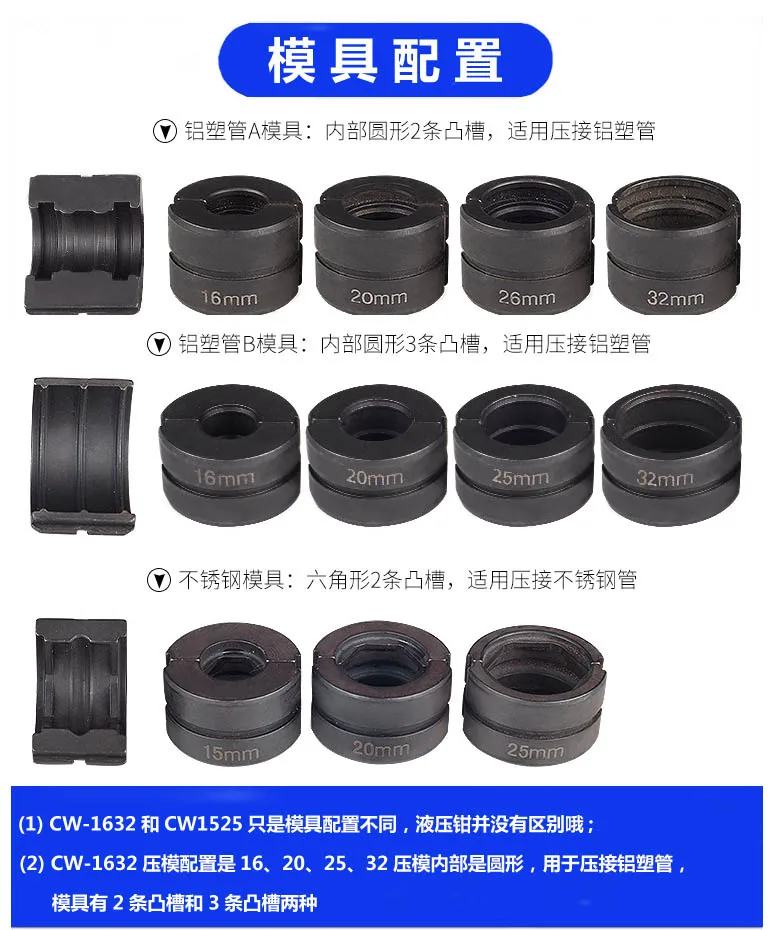

Mold configuration

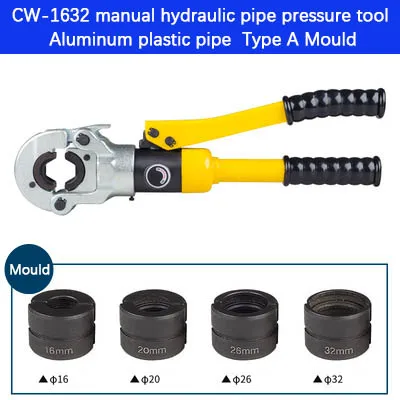

Aluminum plastic pipe A mold: internal circular 2 convex grooves, suitable for crimping aluminum plastic pipe

Aluminum plastic pipe B mold: internal circular 3 convex grooves, suitable for crimping aluminum plastic pipe

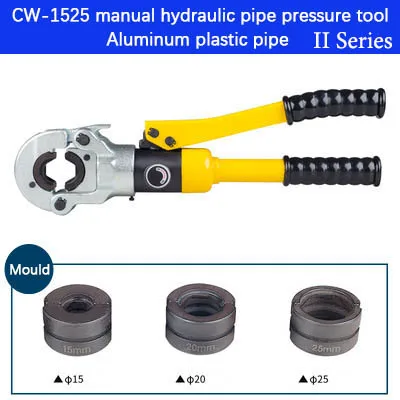

Stainless steel mold: hexagon with 2 convex grooves, suitable for crimping stainless steel pipes

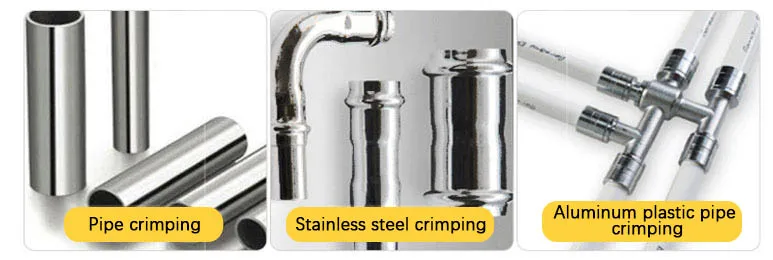

Crimping effect display

Crimping aluminum plastic pipe

Aluminum plastic pipe A/B die crimping is required

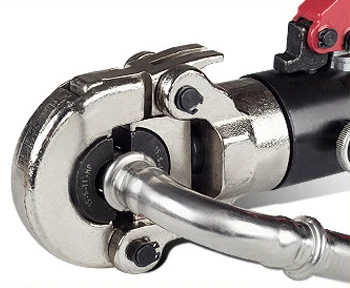

Crimping stainless steel pipe

Stainless steel die crimping is required

Product parameters

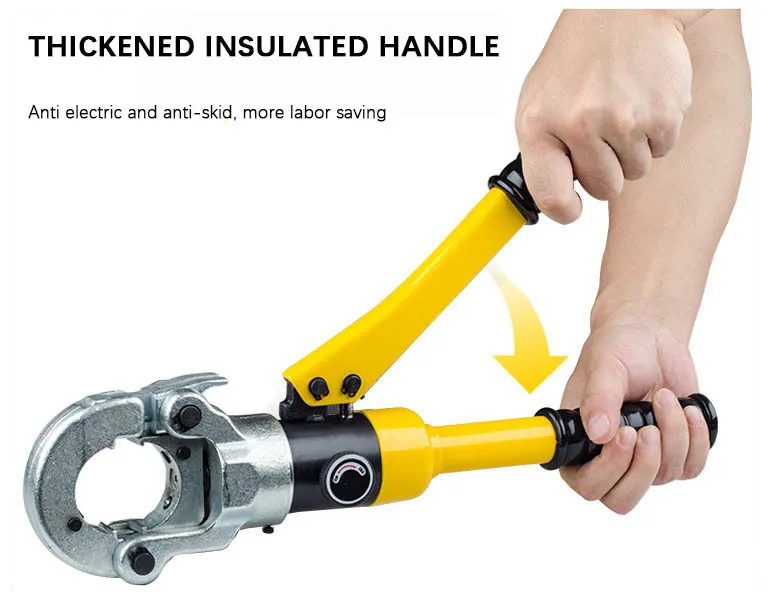

FEATURE: ➤Hydraulic crimping tool for connecting fitting with pipe. ➤Well balanced barycenter, little angled wire pressing head meet with human-machinery engineering theory, operation more easy. ➤All stressing parts made of special steel treatment with quenching. ➤Can be transposed mold, the same tools can be crimped into 16-32mm from the different specifications of pipe fittings. ➤For plastic pipes, PEX pipes, lead pipes and other accessories brass, copper header, stainless steel compression sleeve, aluminum, copper jacket cover. ➤U type Dies for plastic pipes, PEX pipes, lead pipes ,cant use for copper header, stainless steel compression sleeve

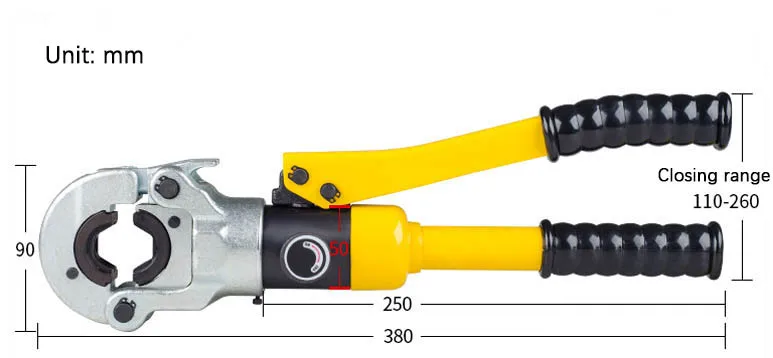

Model	CW-1632	Length	400mm
Crimping force	10T	Weight	3.15KG (excluding package)
3.15KG (excluding package)	Aluminum plastic pipe A mold: Φ 16、 ф 20、 ф 25 (26)、 ф 32 Aluminum plastic pipe B mold: ф 16、 ф 20、 ф 25、 ф32 Stainless steel mold: ф 15、 ф 20、 ф 25

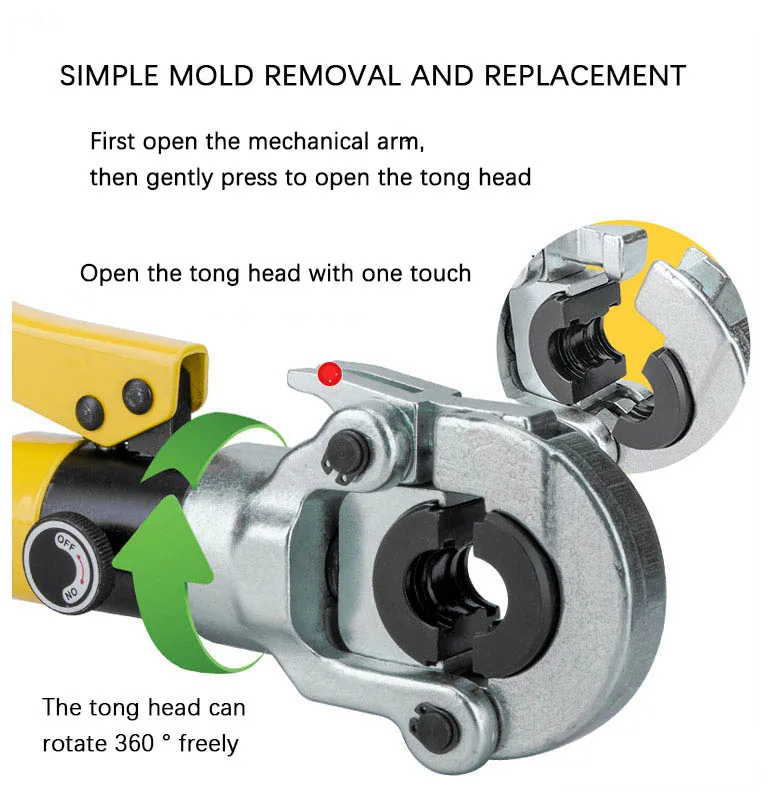

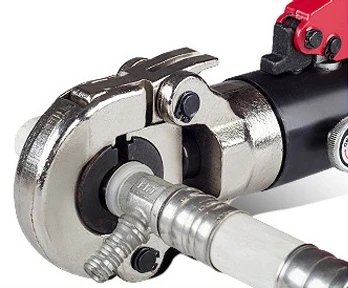

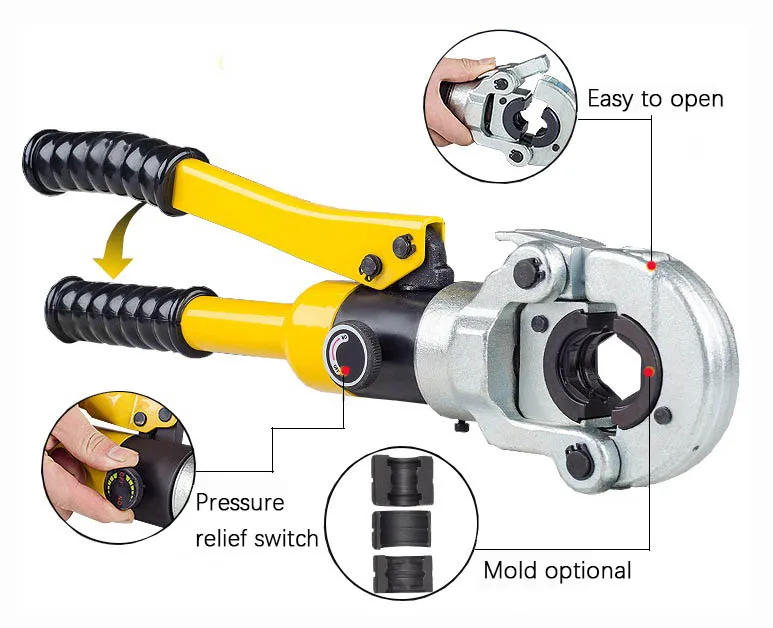

Product characteristics	·Suitable for connection of dry aluminum plastic pipe, PEX pipe, PB pipe, etc. with copper pipe fittings and copper joints, Clamp stainless steel sleeve (air leak proof), copper sleeve, aluminum sleeve; ·The crimping head can rotate 360 degrees freely and work in a narrow place: ·The hydraulic system is stable; Light and easy to carry; Double speed oil inlet design, fast crimping
